Industrial Compatibility Wide Range Pretreatment Spray System for Industrial Coating Production Line

Metal Surface Pretreatment Spray System for Powder Coating Lines

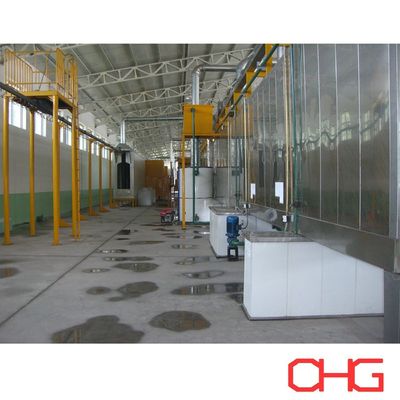

A spray pretreatment system is one of the most critical sections of a powder coating production line, responsible for cleaning and conditioning metal surfaces before coating application. By effectively removing contaminants and preparing the substrate, the system enhances coating adhesion, improves corrosion resistance, and ensures a uniform, durable surface finish.

Modern pretreatment systems combine advanced chemical treatment with precision spray technology to deliver reliable surface preparation for a wide range of metal products and industrial applications. Different process configurations can be selected according to substrate materials, coating standards, and production requirements.

Main Pretreatment Processes

1. Degreasing: The pretreatment process begins with degreasing, where specialized cleaning solutions are sprayed onto the workpiece surface to remove oils, grease, dust, machining residues, and other contaminants. Proper cleaning is essential for achieving strong coating adhesion and preventing surface defects during the powder coating process.
2. Phosphating: During phosphating, a phosphate conversion coating is formed on the metal surface through chemical spraying. This microcrystalline layer improves paint adhesion while significantly increasing corrosion resistance, making it ideal for components exposed to demanding operating environments.
3. Rinsing: After each chemical treatment stage, the workpieces pass through rinsing sections where clean water removes any residual chemicals from the surface. Effective rinsing prevents contamination between stages and helps maintain stable pretreatment quality throughout the entire production process.
4. Surface Conditioning: For certain applications, additional surface conditioning may be introduced to optimize substrate texture and improve coating performance. This process enhances micro-level roughness and promotes stronger mechanical bonding between the metal surface and the powder coating layer.
5. Drying: Before entering the powder spray booth, the workpieces are completely dried to eliminate residual moisture. Proper drying is crucial to avoid coating defects such as blistering, pinholes, or poor adhesion, ensuring the surface is fully prepared for high-quality powder application.

System Features

Efficient Spray Cleaning Technology:

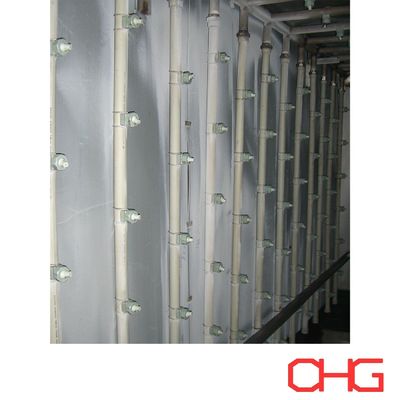

High-performance spray nozzles and circulation systems ensure complete and uniform chemical coverage across complex workpiece geometries.

Flexible Process Configuration:

The pretreatment line can be configured with multiple stages based on production requirements, including degreasing, phosphating, passivation, rinsing, and drying sections.

Durable Industrial Structure:

The system is manufactured using corrosion-resistant materials and industrial-grade components to ensure long-term reliability and stable operation.

Energy-Efficient Design:

Optimized spray circulation, heating systems, and water management reduce chemical consumption, lower operating costs, and improve environmental performance.

Automated Process Control:

Integrated control systems monitor process parameters such as temperature, spray pressure, chemical concentration, and conveyor synchronization to maintain consistent treatment quality.

Contact us to receive a customized technical proposal and optimized pretreatment system design for your powder coating production line.
