Top Powder Coating Line with PVC Spray Booth and Pretreatment Power Wash Your One-Stop Coating Solution

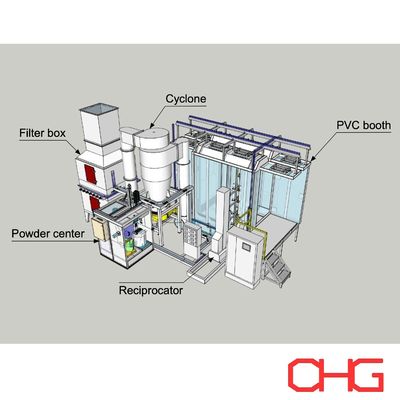

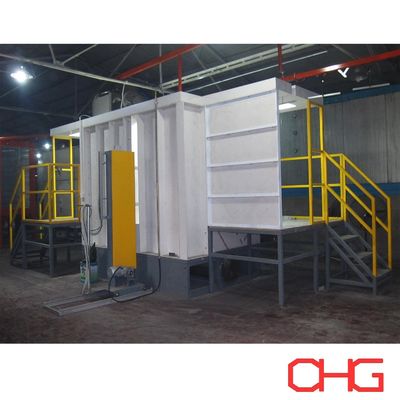

Standard Coating Booth – Product Introduction

Designed for efficiency, reliability, and ease of operation, our standard coating booth features a streamlined structure that enables quick installation and minimal downtime. The overall design prioritizes accessibility and maintenance, with both the internal chamber and external vestibule areas engineered for easy cleaning, ensuring a consistently clean and controlled working environment.

Key Features

1. Optimized Structural Design
   The booth adopts a modular and user-friendly structure, allowing fast assembly and convenient maintenance. Smooth internal surfaces reduce powder accumulation and simplify routine cleaning.

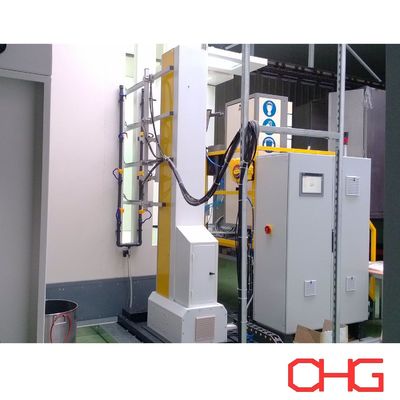

2. Dual Spray System Configuration
   Each side of the booth is equipped with:
   Two sets of automatic spray guns for consistent, high-efficiency coating application.
   Two sets of manual spray guns for detailed coating and touch-up operations.
   This combination ensures both productivity and precision, especially for complex workpieces.
3. Convenient Utility Integration
   Compressed air connectors are installed on both sides of the booth, allowing easy and flexible connection of spraying equipment and auxiliary tools.
4. Effective Containment Design
   Shielded sections at the booth entrance and exit effectively prevent powder escape and overspray diffusion, maintaining a clean surrounding environment and improving powder utilization efficiency.
5. Enhanced Lighting System
   The booth is equipped with six groups of specialized “three-proof” lighting fixtures (dust-proof, moisture-proof, explosion-protected), providing a minimum illumination level of 300 lux. This ensures excellent visibility, enhancing operator accuracy and safety.
6. Integrated Safety System
   An emergency stop button is installed at the main control station, allowing immediate shutdown of the conveyor or suspension system in case of emergency, ensuring maximum protection for both personnel and equipment.

Customization Options

While the standard coating booth meets general industry requirements, we also offer flexible customization services, including:

• Non-standard booth dimensions and configurations

• Customized spray system layouts

• Integration with specific conveyor systems

• Adaptation to existing factory layouts

Additionally, the external room or enclosure can be constructed by the client according to on-site conditions, providing further flexibility for installation and integration.

Powder Coating Process

The coating booth is an integral part of a complete powder coating line, which typically follows these process steps:

1. Surface Preparation: Workpieces are cleaned and degreased to remove contaminants, ensuring proper coating adhesion.

2. Pre-Treatment: Chemical treatments such as phosphating or chromate conversion enhance corrosion resistance and improve coating performance.

3. Drying: Moisture is removed in drying ovens to ensure a clean and dry surface before coating.

4. Powder Coating Application: Electrostatically charged powder is applied using spray guns, ensuring uniform coverage across all surfaces.

5. Powder Curing: Coated parts are heated in curing ovens, where the powder melts and chemically cross-links to form a durable coating film.

6. Cooling: The coated workpieces are cooled to stabilize the coating and maintain its properties.

7. Quality Inspection: Final inspection ensures coating thickness, adhesion, and appearance meet required standards.

Engineering & Custom Solutions

All coating booths and production lines can be fully customized based on your specific requirements, including:

• Workpiece size and geometry

• Production capacity

• Coating quality standards

• Workshop layout and environmental conditions

Our engineering team will work closely with you to deliver a solution that ensures optimal performance, efficiency, and long-term reliability.

Contact us today to receive your customized coating booth solution and complete production line proposal.
