Professional Powder Coating Production Line Featuring Customized Hardware Spraying Equipment and Electrostatic Spray Guns

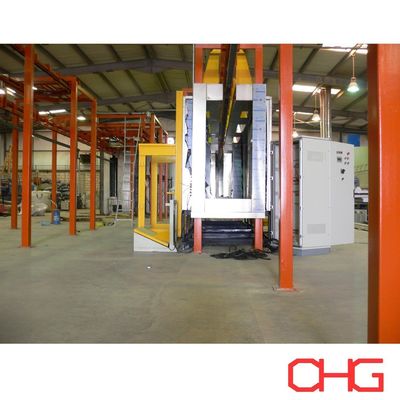

Automatic Powder Coating Production Line for Aluminum Profiles

This automatic powder coating production line is specifically designed to process aluminum profiles of various sizes and geometries. Equipped with an overhead conveyor system, it ensures smooth, stable, and continuous transportation of workpieces throughout each stage of the coating process.

Manual loading and unloading stations provide the flexibility required to handle diverse profile configurations, making the system highly adaptable to different production requirements while maintaining precision and efficiency.

Key Features

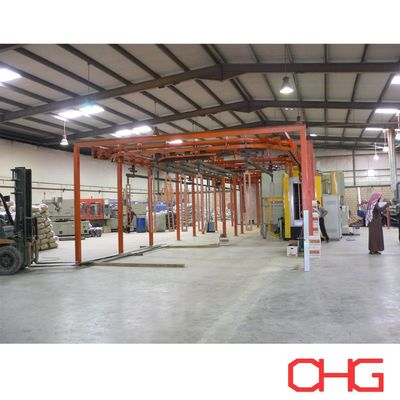

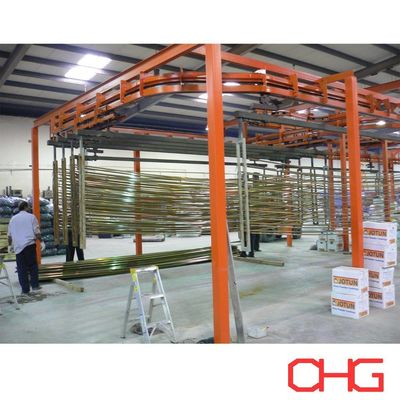

• Overhead Conveyor System
  Ensures seamless and efficient movement of workpieces through all process stages, optimizing workflow and production continuity.
• Manual Loading & Unloading
  Allows flexible handling of various profile shapes and sizes, ensuring accurate positioning and improved coating quality.
• High Versatility
  Suitable for a wide range of aluminum profiles, delivering consistent performance and superior finishing results across different applications.

Powder Coating Process

To achieve high-quality, durable, and aesthetically superior finishes, the production line follows a carefully controlled process:

1. Surface Preparation: Workpieces are cleaned and degreased to remove oil, dust, and contaminants, ensuring optimal coating adhesion.

2. Pre-Treatment: Chemical treatments such as phosphating or chromate conversion are applied to enhance corrosion resistance and improve bonding between the substrate and coating.

3. Drying: Residual moisture is removed in drying ovens to ensure a completely dry surface prior to coating application.

4. Powder Coating Application: Electrostatically charged powder is sprayed onto grounded aluminum profiles, ensuring uniform coverage across all surfaces.

5. Curing: Coated workpieces are transferred into curing ovens, where the powder melts, flows, and chemically cross-links to form a durable and continuous coating film.

6. Cooling: The coated profiles are cooled to stabilize the coating and maintain its mechanical and visual properties.

7. Quality Inspection: Final inspection includes checks for coating thickness, adhesion, surface finish, and overall quality to ensure compliance with required standards.

Customization & Engineering Support

All coating production lines are custom-engineered based on the client’s specific product characteristics, production capacity, and workshop layout.

For an accurate quotation and optimal system configuration, we recommend providing detailed technical parameters, including:

• Workpiece dimensions and weight

• Required production capacity

• Coating specifications

• Available factory space and layout

Our engineering team will work closely with you to develop a tailored solution that maximizes efficiency, ensures consistent coating quality, and meets your exact operational requirements.
