Forging Conveyor System Equipment and Customized Liquid Spray Painting Line

Glass Lubricant Spraying Line for Titanium and Alloy Forging Operations

Workpiece Capabilities

This specialized spraying line is designed for the surface treatment of forged components with complex geometries and diverse material compositions. It is compatible with a wide range of high-performance metals, including:

• Titanium and titanium-based alloys

• Heat-resistant superalloys

• High-strength structural steels

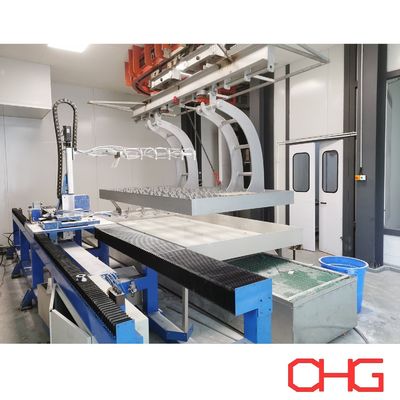

Spray Application System

The line features a dual-mode spraying configuration to ensure complete surface coverage and consistent film thickness:

• Automatic Spray Guns: Provide uniform coating during continuous operation.

• Manual Spray Stations: Allow operators to perform precise touch-up applications for complex or irregular parts.

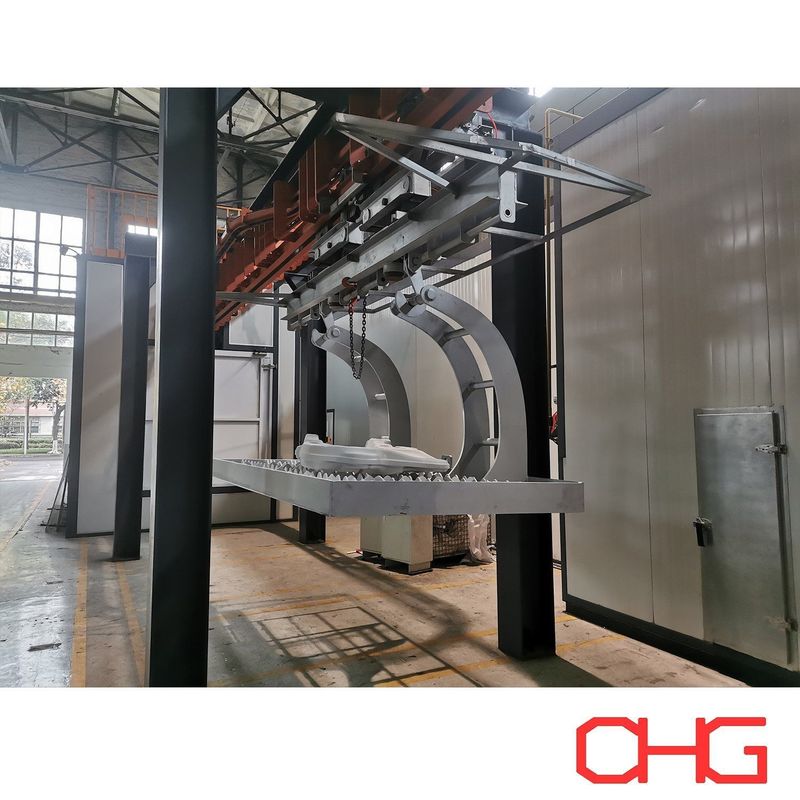

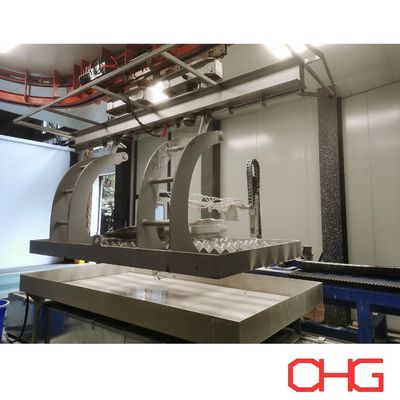

Material Handling Configuration

A reinforced accumulation conveyor system ensures the safe and stable transfer of heavy forged blanks through each stage of the process.

• Load Capacity: Up to 2 tons per workpiece

• Drive System: Precision-controlled for stable movement and accurate positioning

Process Application — Titanium Alloy Forgings

Before heating and forming titanium alloy components, a glass-based lubricant is applied to enhance the forging process. This treatment offers several critical benefits:

• Prevents Oxidation: Protects surfaces from high-temperature oxidation and contamination.

• Reduces Friction: Minimizes wear between tooling and workpieces.

• Enhances Lubrication: Promotes smoother metal flow, improving forming performance and part quality.

This line is ideal for forging operations requiring high-precision lubrication, surface protection, and consistent coating performance on demanding metal alloys.
