Automobile Oil Filter Housing Powder Spraying Coating Line with Galvanized Sheet Substrate and Customization Option

Galvanized Steel Application – Fully Automated System

This production line is specifically designed for automatic powder coating of automotive oil filter housings manufactured from galvanized steel sheets. The system integrates automatic electrostatic powder spraying, a PP-structured spray booth, and a monorail floor conveyor to ensure stable, efficient, and high-quality coating performance.

To further enhance process stability and powder utilization efficiency, the line has been upgraded with:

• Anti-static powder spray booth design

• Advanced powder recovery and recirculation system

• Optimized curing oven configuration for improved thermal efficiency and coating performance

The system is engineered to meet the high durability and corrosion-resistance requirements of automotive components.

Key Features:

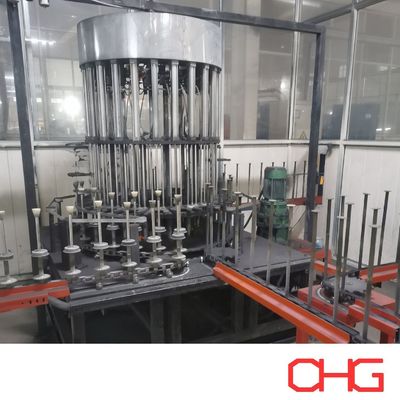

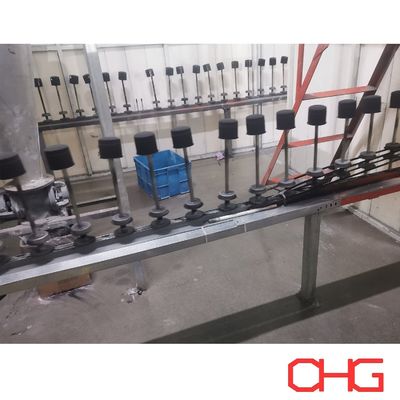

Customized Ground Chain (Monorail Floor) Conveyor System

The monorail ground conveyor serves as the backbone of the production line, providing stable and continuous transport of filter housing components through each processing stage.

• Heavy-duty structure for galvanized steel parts

• Precise and secure positioning during transportation

• Customizable carrier fixtures according to part dimensions

• Controlled conveying speed for synchronized spraying and curing

This system ensures smooth workflow, high repeatability, and reduced manual handling.

Pretreatment Process

Prior to powder coating, filter housings undergo a surface pretreatment process designed to optimize coating adhesion and corrosion resistance.

Typical steps may include:

• Cleaning and degreasing

• Surface conditioning

• Conversion coating treatment (if required)

Given the galvanized substrate, special attention is paid to surface activation to ensure excellent bonding between the zinc layer and powder coating.

Automatic Powder Spraying System

The spray section utilizes automatic electrostatic powder guns to ensure:

• Uniform film thickness

• High transfer efficiency

• Stable coating quality

• Reduced overspray

The spray booth is constructed from PP (polypropylene), providing:

• Excellent corrosion resistance

• Easy cleaning and maintenance

• Long service life in powder coating environments

Anti-Static Powder Spray Booth & Recovery System

To improve coating consistency and reduce powder waste, the line is equipped with:

• Anti-static spray booth design to prevent powder adhesion to booth walls

• Efficient powder collection and filtration system

• Powder recirculation capability

This system significantly enhances powder utilization rate and reduces operational costs.

Multiple Coating Capability (Optional)

Depending on product requirements, the line can support:

• Primer coating

• Base coating

• Top coating

The monorail conveyor ensures seamless transfer between coating stages for controlled and consistent processing.

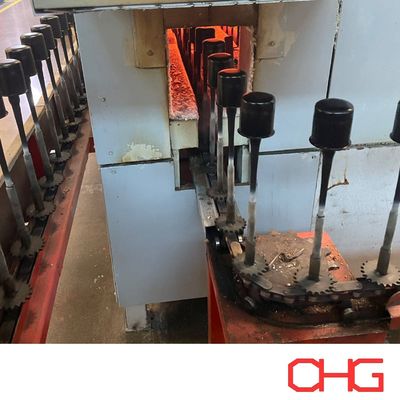

Optimized Curing Oven

After powder application, components enter a modified curing oven designed for improved:

• Temperature uniformity

• Thermal efficiency

• Energy savings

• Stable curing performance

The curing process ensures proper powder melting, flow, and cross-linking, forming a durable, corrosion-resistant coating suitable for automotive environments.

Automation & Process Control

The production line incorporates intelligent control systems to monitor and regulate:

• Conveyor speed

• Powder flow rate

• Electrostatic voltage

• Oven temperature profile

Automation guarantees consistent coating quality, reduced human error, and improved production efficiency.

Performance Advantages

By integrating a robust ground conveyor system, anti-static spray booth technology, optimized curing design, and automated process control, this powder coating line delivers:

• High-quality and uniform coating film

• Improved corrosion resistance for galvanized substrates

• Enhanced powder utilization efficiency

• Reduced operational costs

• Stable, repeatable automotive-grade production
