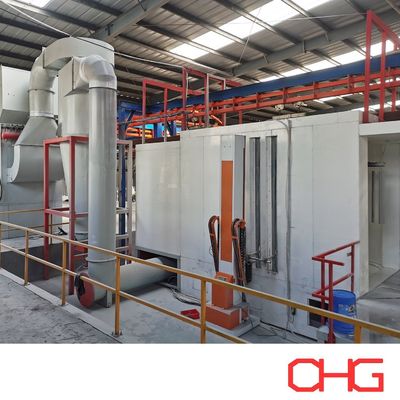

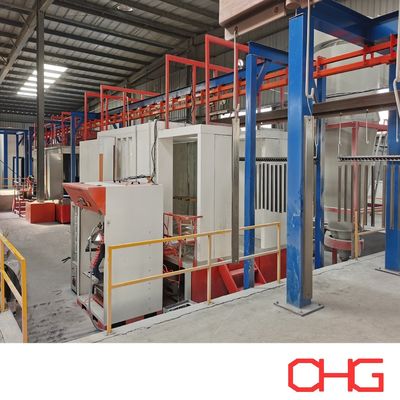

Powder Coating Line providing stable conveying and coating for aluminum profiles of various sizes and structural complexities

Powder Coating Production Line for Aluminum Profiles

Flexible, Efficient, and Customizable Solution

This powder coating production line seamlessly integrates automated electrostatic spraying with the flexibility of manual coating operations, making it ideally suited for aluminum profiles of various sizes, geometries, and structural complexities.

The system utilizes an overhead conveyor system to transport workpieces through each processing stage while allowing manual loading and unloading. This configuration ensures stable conveying performance, optimized workshop layout, and efficient handling of both standard and customized aluminum profiles.

The combination of automation and manual intervention provides superior coating coverage, especially for intricate profiles, deep grooves, and complex cross-sections—ensuring consistent finish quality while maintaining production flexibility.

Key Advantages

• Suitable for aluminum profiles of diverse dimensions and shapes

• Overhead conveying system for space optimization and smooth workflow

• Hybrid spraying system (automatic + manual) for enhanced coverage

• Efficient handling of complex or customized parts

• Stable, repeatable coating quality

Powder Coating Process Flow

1. Surface Preparation

Aluminum profiles undergo thorough surface preparation to remove oil, dust, and contaminants. Proper cleaning is essential to ensure strong powder adhesion and consistent finish performance.

2. Pre-Treatment

The profiles are chemically treated to improve corrosion resistance and coating adhesion. Common pretreatment methods include:

• Chemical cleaning

• Phosphating

• Chromate or chrome-free conversion coating

This step enhances surface activation and long-term coating durability.

3. Drying

After pretreatment, the profiles pass through a drying oven to eliminate residual moisture. A completely dry surface is critical for optimal electrostatic powder application.

4. Electrostatic Powder Application

Powder coating material is electrostatically charged and sprayed onto grounded aluminum profiles. The charged particles are uniformly attracted to the surface, forming an even powder layer. Automatic spray guns ensure consistency, while manual touch-up ensures complete coverage on complex areas.

5. Powder Curing

The coated profiles enter a curing oven, where controlled heating melts and flows the powder particles into a smooth and continuous film. The curing process chemically cross-links the coating, forming a durable, impact-resistant, and corrosion-resistant finish.

6. Cooling

After curing, the profiles undergo controlled cooling to stabilize the coating film and preserve surface appearance.

7. Quality Inspection

Each finished profile is inspected for:

• Coating thickness

• Surface appearance

• Adhesion performance

• Overall coating integrity

Only products meeting quality standards proceed to packaging or further processing.

Customization & Consultation

All coating production lines are designed according to the client’s specific products, capacity requirements, and workshop conditions.

Contact us today to receive your personalized design proposal. We also provide customized solutions for various types of coating production lines, tailored to meet your product specifications and operational goals.
