Custom Powder Coating Line for MDF and Metal Boards with Automated Spraying Technology and Stable Overhead Conveyor System

MDF Modified Powder Coating Production Line

For Wooden Panels and Metal Boards – Customizable Solution

This advanced MDF-modified powder coating production line is specifically engineered for coating medium-density fiberboard (MDF) as well as metal panels. The system integrates automated electrostatic spraying technology with supplementary manual finishing to ensure uniform coverage, fine edge protection, and high-end surface quality.

Designed for low-temperature curing powder systems, the line is particularly suitable for heat-sensitive substrates such as MDF, while remaining fully compatible with metal board applications.

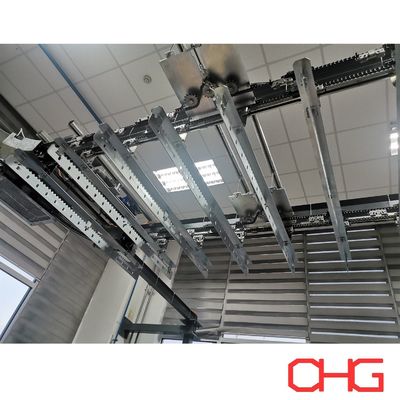

A Power & Free overhead conveyor system ensures stable transport, flexible routing, and optimized production flow. Despite its high level of automation, the system retains manual loading and unloading operations to maintain flexibility for customized products and variable production batches.

Production Workflow

1. Manual Loading

Operators load workpieces onto the overhead conveyor system, ensuring proper positioning and secure handling.

2. Preheating Stage (60–80°C, approx. 3 minutes)

Workpieces pass through a controlled preheating zone to:

• Remove residual surface moisture

• Improve electrostatic powder attraction

• Stabilize substrate temperature

• Enhance coating leveling performance

This step is especially critical for MDF substrates to ensure optimal powder adhesion.

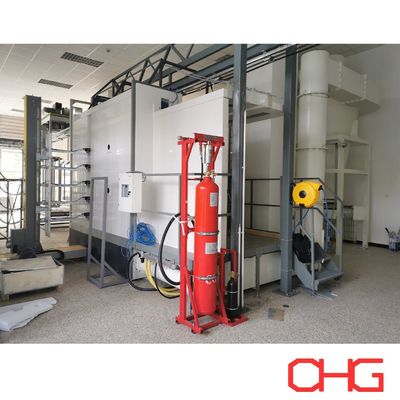

3. Automatic Powder Spraying + Manual Touch-Up

The coating stage combines:

• Automated electrostatic spray guns for consistent film thickness and high transfer efficiency

• Manual supplementary spraying for edges, corners, and complex geometries

This hybrid approach ensures full coverage and premium surface appearance.

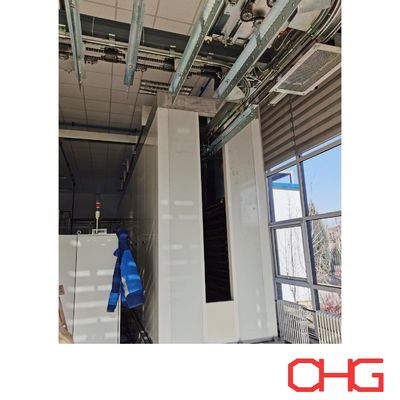

4. Low-Temperature Powder Curing (135–140°C, 10 minutes)

The coated workpieces enter a curing oven designed specifically for MDF-modified powder.
The controlled low-temperature curing process:

• Melts and levels the powder

• Promotes chemical cross-linking

• Prevents substrate deformation

• Produces a durable, smooth, and scratch-resistant finish

5. Natural Cooling

After curing, the parts cool naturally under controlled conditions, allowing the coating film to fully stabilize and harden.

6. Manual Unloading

Finished products are manually removed from the conveyor for quality inspection, packaging, or downstream processing.

Key Advantages

• Suitable for both MDF and metal boards

• Low-temperature curing technology for heat-sensitive substrates

• Power & Free overhead conveyor for efficient material handling

• Hybrid spraying system (automatic + manual)

• Stable curing performance and uniform coating thickness

• Flexible production for customized panel sizes

Customization & Quotation

All powder coating production lines are engineered based on the client’s specific products, capacity requirements, and factory layout.

For an accurate technical proposal and quotation, we require detailed parameters such as:

• Workpiece dimensions and weight

• Production capacity (sets/hour or pieces/day)

• Powder type (low-temp MDF powder or standard powder)

• Available workshop space

• Automation level requirements

Please contact us with a detailed specification sheet. Our engineering team will design a tailored solution that maximizes efficiency, coating quality, and return on investment.
