Customized Carbon Steel Sheet Powder Coating Line with Automatic Robot Polish and Technical Data

This powder coating production line is specifically designed for spraying carbon steel sheets and assembled cabinet structures used in safe manufacturing. The system is engineered to accommodate workpieces of various sizes and shapes, including cabinet bodies and door panels.

The spray booth is constructed from high-quality PVC material, providing excellent corrosion resistance and easy maintenance. The coating process combines automatic electrostatic powder spraying with supplementary manual touch-up spraying to ensure full coverage and high surface quality.

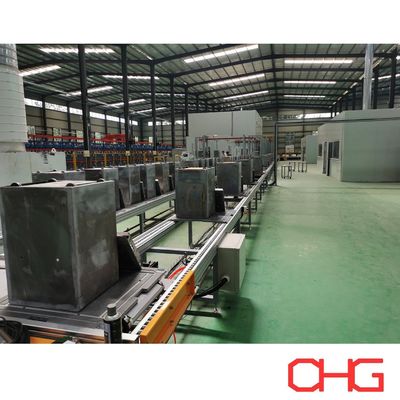

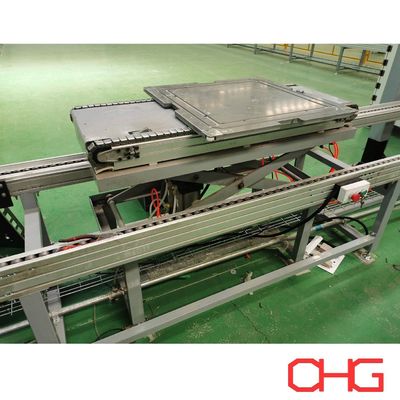

The pretreatment section utilizes a skid-type ground conveyor system for stable transport of heavy cabinet components, while the powder spraying and curing sections adopt an overhead conveyor system operating at constant speed to ensure coating uniformity and production efficiency.

Production Line Process Flow

Welding Area Loading
Manipulator loads cabinet bodies and door panels onto two separate stations.

→ Metal Grinding

• Robot performs weld seam grinding on cabinet bodies

• Manual grinding for door panels

• Surface leveling and finishing of flat areas

→ Phosphating Solution Wiping: Manual wiping to enhance surface preparation.

→ Moisture Drying (40–50°C): Low-temperature drying to remove residual moisture.

→ Manual Putty Application: Surface defect correction and smoothing.

→ Putty Drying (40–50°C)

→ Manual Putty Grinding: Final surface leveling before coating.

→ Workpiece Accumulation (Approx. 100 Sets): Buffer storage before entering coating stage.

→ Transfer to Mechanical Loading Station

→ Manual Dust Removal: Electrostatic air gun blowing to eliminate surface dust.

→ Automatic Powder Spraying + Manual Touch-Up

→ Powder Curing (200°C, 18 Minutes): Thermal curing to melt, level, and chemically cross-link the powder coating film.

→ Air Cooling

→ Manual Installation of Casters

→ Human-Machine Assisted Unloading to AGV Cart

Powder Coating Process Description

1. Surface Preparation

Prior to coating, all carbon steel surfaces undergo mechanical finishing and cleaning to remove welding residues, dust, grease, and contaminants. Proper preparation ensures strong powder adhesion.

2. Pretreatment

Phosphating solution treatment improves corrosion resistance and enhances coating bonding performance.

3. Drying

Low-temperature drying removes residual moisture, ensuring optimal surface condition for powder application.

4. Electrostatic Powder Application

Powder particles are electrostatically charged and sprayed onto grounded cabinet components. The combination of automatic guns and manual spraying guarantees uniform coating thickness and complete edge coverage.

5. Curing

In the curing oven (200°C, 18 minutes), the powder melts, flows, and chemically cross-links to form a smooth, durable, and impact-resistant coating film.

6. Cooling

Controlled air cooling stabilizes the coating film and prepares the workpieces for downstream assembly.

7. Quality Inspection

Each finished component undergoes inspection for:

• Coating thickness

• Surface appearance

• Adhesion performance

• Overall finish quality

Only qualified products proceed to final assembly and dispatch.
