Automatic VOC Treatment RCO Equipment With Regenerative Catalytic Combustion System

Automatic VOC Treatment RCO Equipment With Regenerative Catalytic Combustion System

Brand Name:	CHG
Model Number:	WTE-01
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	100 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Control Unit:

PLC

Technical Data:

Customized

Transport Package:

As Required

Package Size:

570.00cm * 283.00cm * 190.00cm

Package Gross Weight:

2650.000kg

Warranty:

1 Year

Packaging Details:

Varies depending on the design

Highlight:

Automatic RCO Equipment

VOC Treatment RCO Equipment

Product Description

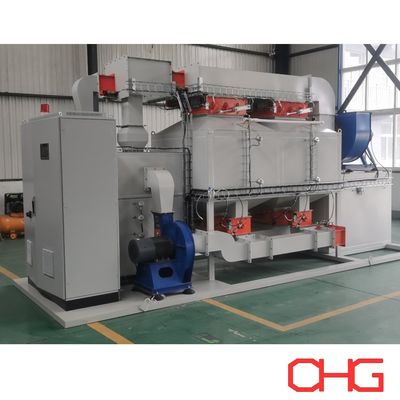

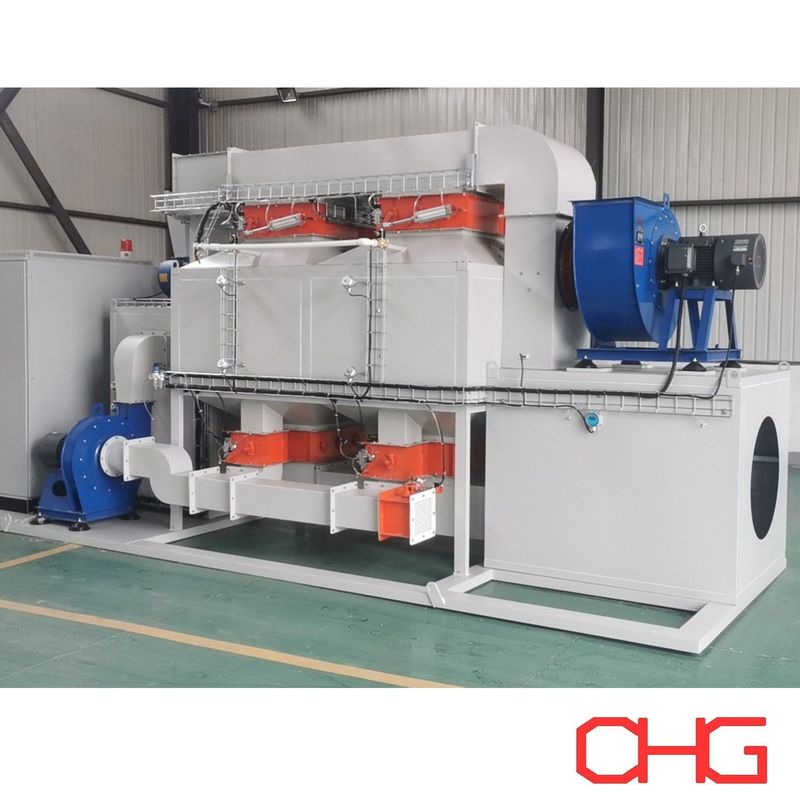

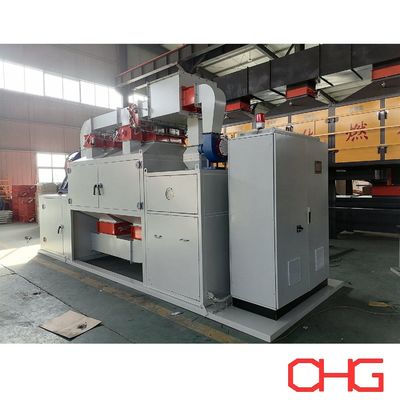

Automatic Voc Treatment RCO Equipment with Regenerative Catalytic Combustion System

This equipment is designed for the treatment of VOC (Volatile Organic Compounds) from organic waste gas. The project aims to implement environmental protection measures for the organic waste gas emitted during the production process, ensuring that emissions comply with regulatory standards. The system comprises a dry filter box, an adsorption bed for organic waste gas, and a CO catalytic oxidation device.

Technical features

- The entire system equipment realizes the automation of purification and desorption process, and the operation process does not produce secondary pollution.

- Two-stage dust filtration is used before the adsorption bed, which has high purification efficiency and ensures the service life of the adsorption device.

- Use specially formed honeycomb activated carbon or zeolite molecular sieve as the adsorption material. Since its specific gravity is 8-10 times that of the strip adsorption fiber, the organic solvent can be adsorbed before regeneration to reach 25% of the total weight of the adsorption material. It has a long service life Long, low operating resistance of the adsorption system, high purification efficiency and so on.

- High-quality precious metal palladium and platinum are used as catalysts on honeycomb ceramics, which have the characteristics of low resistance, high activity, long service life, low decomposition temperature, short desorption preheating time, low energy consumption, and good stability. When the concentration of organic waste gas reaches 2000ppm, it can maintain spontaneous combustion. The catalytic burner has high conversion efficiency and stable performance. The catalytic combustion rate is above 97%.

- Use waste heat to save energy. The desorption and desorption of organic waste gas in this device all use hot air as the desorption medium, and this hot air flow comes from the waste heat after catalytic combustion in the system. After desorption, the concentrated organic waste gas enters the catalytic burner for purification treatment, no additional energy is required, and the operating cost is greatly reduced.

- PLC control system is adopted to realize automation of equipment operation and operation process, and the operation process is safe, stable and reliable. For example, the catalytic combustion heating part is automatic, and the desorption process is automatic program control, and the desorption temperature is automatically controlled by the temperature signal feedback during desorption.

Vocs Treatment Regenerative Catalytic Combustion (RCO) Equipment Waste Treatment

Tags:

Regenerative Catalytic Oxidation System for VOC Treatment with Automated Process and High-Performance Adsorption Material
