PLC Control Electrostatic Powder Coating System Automatic Hardware Spraying Equipment

PLC Control Electrostatic Powder Coating System Automatic Hardware Spraying Equipment

Brand Name:	CHG
Model Number:	AC-20
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Coating:

Powder, Powder Coating

Method Type:

Automatic

Control Unit:

PLC

Technical Data:

Customized

Specification:

Customized

Trademark:

CHG

Packaging Details:

Varies depending on the design

Highlight:

PLC Control Electrostatic Powder Coating System

Electrostatic Powder Coating System Automatic

Product Description

Automatic Powder Coating Production Line for Diverse Metal Parts

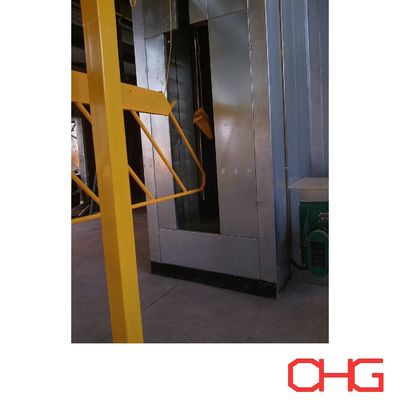

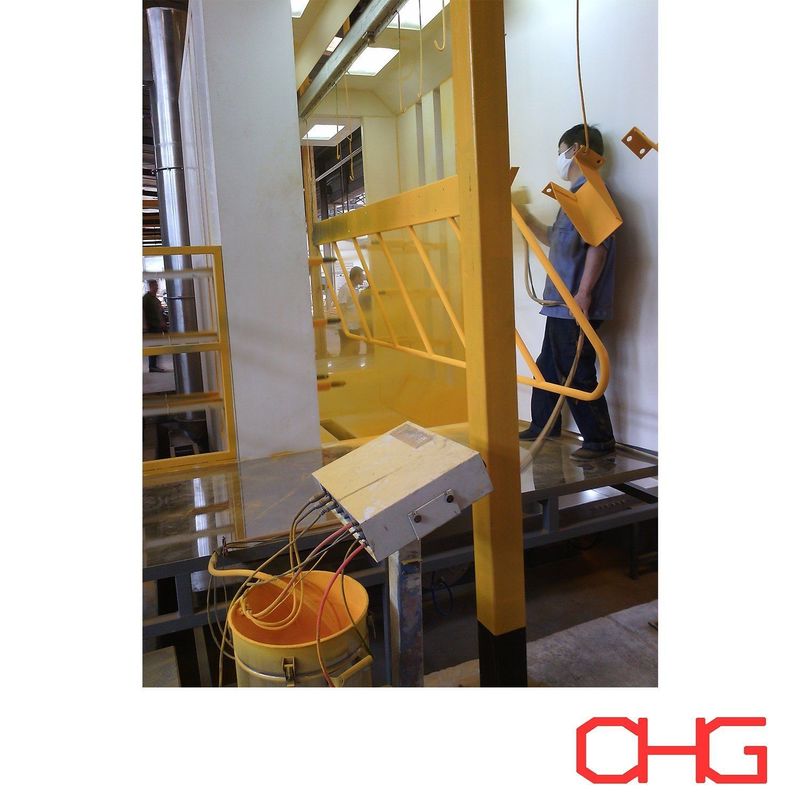

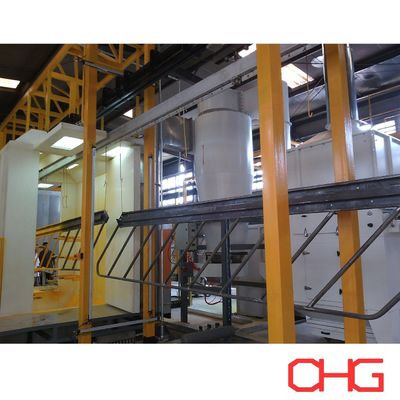

This automated powder coating line is designed to handle metal parts of various sizes and shapes, offering versatility and flexibility for different applications. The spray booth is constructed from PVC material, providing excellent chemical resistance and durability. The spraying method combines automatic gun spraying with supplementary manual coating, ensuring precision and adaptability for complex geometries. The production line utilizes a power & free overhead conveyor system for efficient part movement, while parts are loaded and unloaded manually to accommodate diverse part configurations.

Customized Solutions and Quotation

Our powder coating production lines are meticulously tailored to meet the specific requirements of each client's products and operational demands. To provide an accurate quotation, we require detailed parameters of the production line you need. We invite you to contact us and share a comprehensive specification for discussion; this will greatly assist us in crafting a solution that perfectly aligns with your needs.

By choosing our customized approach, you can expect a powder coating solution that optimizes efficiency, ensures high-quality finishes, and meets your unique manufacturing requirements. Feel free to reach out for an exclusive design proposal tailored to your specifications.

The Process of Powder Coating Line:

1. Surface Preparation:	The initial stage of the powder coating process involves surface preparation, which is critical for ensuring optimal adhesion of the powder coating to the aluminum profiles. This step includes cleaning, degreasing, and removing any contaminants from the surfaces to be coated, creating a pristine base for subsequent treatments.
2. Pre-Treatment:	After surface preparation, the aluminum profiles undergo a pre-treatment process to enhance coating adhesion and corrosion resistance. Common pre-treatment methods include chemical cleaning, phosphating, or chromate conversion coating. The pre-treatment prepares the aluminum surface for better powder adhesion and improves coating performance.
3. Drying:	Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.
4. Powder Coating Application:	The dried aluminum profiles are then ready for powder coating application. The powder coating material is electrostatically charged and sprayed onto the aluminum profiles using powder coating guns. The positively charged powder particles are attracted to the grounded aluminum profiles, adhering to the surface uniformly.
5. Powder Curing:	After powder coating application, the aluminum profiles are transferred to curing ovens. In the curing ovens, the powder coating undergoes a thermal curing process. The oven's heat causes the powder particles to melt and flow, creating a continuous, smooth coating film. The curing process also chemically cross-links the powder particles, ensuring a durable and hardened finish.
6. Cooling:	Following the curing process, the coated aluminum profiles enter a cooling phase. This allows the coating to stabilize and ensures that it retains its properties and appearance over time.
7. Quality Inspection:	The final step in the process is a thorough quality inspection. Technicians carefully check the coating thickness, appearance, adhesion, and overall quality to ensure compliance with specified standards. This rigorous inspection guarantees that each coated profile meets the highest quality criteria before it leaves the production line.
