Customized Electrostatic Powder Coating Production Line for Technical Data and Precise Coating System

Customized Electrostatic Powder Coating Production Line for Technical Data and Precise Coating System

Brand Name:	CHG
Model Number:	AC-20
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Size:

Customized

Package Size:

20000.00cm * 200.00cm * 400.00cm

Package Gross Weight:

100000.000kg

Customization:

Available

After-sales Service:

Guide Equipment Installation And Use

Warranty:

1 Year

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Varies depending on the design

Product Description

Automatic Powder Coating Production Line for Diverse Metal Parts

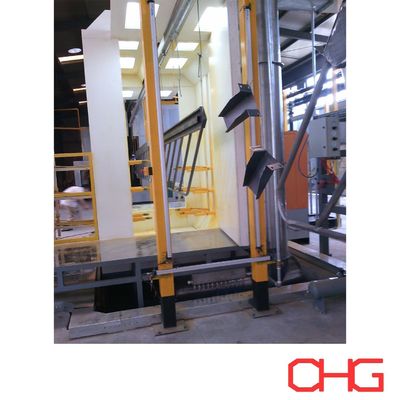

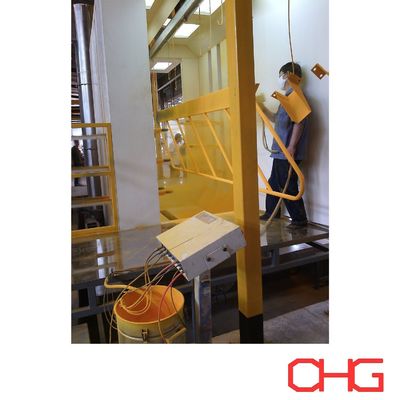

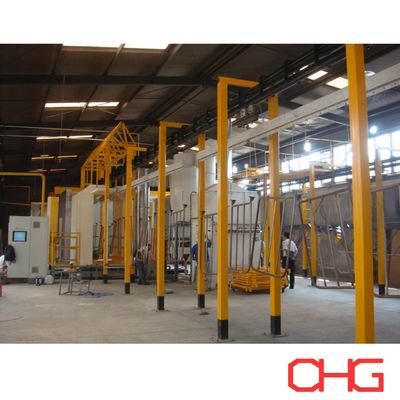

This automated powder coating line is designed to handle metal parts of various sizes and shapes, offering versatility and flexibility for different applications. The spray booth is constructed from PVC material, providing excellent chemical resistance and durability. The spraying method combines automatic gun spraying with supplementary manual coating, ensuring precision and adaptability for complex geometries. The production line utilizes a power & free overhead conveyor system for efficient part movement, while parts are loaded and unloaded manually to accommodate diverse part configurations.

Customized Solutions and Quotation

Our powder coating production lines are thoughtfully designed to precisely match the specific requirements of each client's products and operational needs. To offer an accurate quotation, we need detailed specifications of the production line you envision. We invite you to contact us and provide a comprehensive outline for discussion; this information is crucial for us to develop a solution that perfectly fits your requirements.

Opting for our customized approach means benefiting from a powder coating system that maximizes efficiency, guarantees superior finish quality, and addresses your unique manufacturing challenges. We welcome you to reach out for an exclusive design proposal tailored specifically to your needs.

The Process of Powder Coating Line:

1. Surface Preparation:	The first step involves preparing the surface of the aluminum profiles to ensure proper adhesion of the powder coating. This critical stage includes cleaning, degreasing, and removing any contaminants from the surfaces, setting the foundation for subsequent treatments.
2. Pre-Treatment:	Following surface preparation, the aluminum profiles undergo a pre-treatment process to enhance both coating adhesion and corrosion resistance. Common methods include chemical cleaning, phosphating, or chromate conversion coating, all of which prepare the aluminum surface for optimal powder adhesion and improved coating performance.
3. Drying:	Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.
4. Powder Coating Application:	The dried aluminum profiles are then ready for powder coating application. The powder coating material is electrostatically charged and sprayed onto the aluminum profiles using powder coating guns. The positively charged powder particles are attracted to the grounded aluminum profiles, adhering to the surface uniformly.
5. Powder Curing:	After application, the coated aluminum profiles are transferred to curing ovens where the powder coating undergoes a thermal curing process. The heat causes the powder particles to melt and flow, forming a continuous, smooth film. The curing process also chemically cross-links the powder particles, resulting in a durable and hardened finish.
6. Cooling:	Following the curing process, the coated profiles enter a cooling phase. This stabilizes the coating and ensures it retains its properties and appearance over time.
7. Quality Inspection:	The final step involves a thorough quality inspection. Technicians check the coating thickness, appearance, adhesion, and overall quality to ensure compliance with specified standards. This rigorous inspection guarantees that every coated profile meets the highest quality criteria before leaving the production line.
