Customized Metal Shelves Production Line with Electrostatic Powder Coating and PP Spray Booth

Customized Metal Shelves Production Line with Electrostatic Powder Coating and PP Spray Booth

Brand Name:	CHG
Model Number:	AC-32
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Coating:

Powder, Powder Coating

Condition:

New

Mini Order Qty:

1 Set

Size:

Customized

Specification:

Customized

Trademark:

CHG

Packaging Details:

Varies depending on the design

Product Description

Automatic Powder Coating Line for Shelving Units

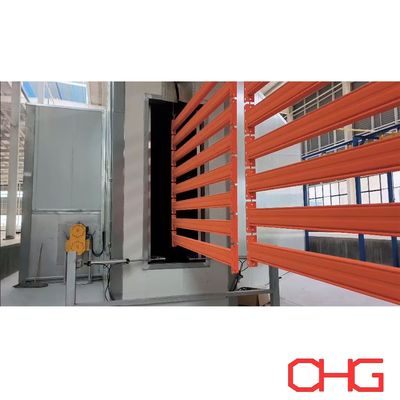

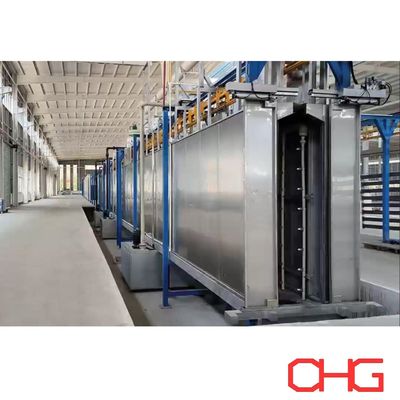

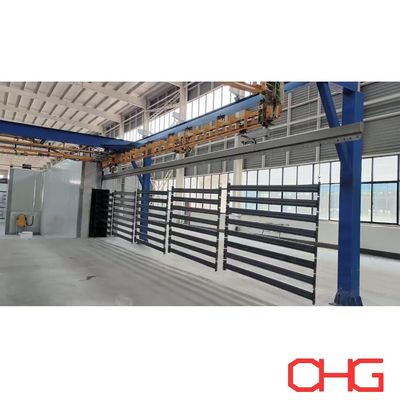

This automatic powder coating line is specifically designed for coating shelving units, with hangers measuring 13.5 meters in length to accommodate these larger workpieces. The spray booth is constructed from PP (polypropylene) material, offering excellent resistance to chemicals and durability. The spraying process integrates automatic gun spraying with supplementary manual coating, ensuring precision and adaptability for complex or hard-to-reach areas. The production line employs a power & free overhead conveyor system for efficient part movement, while parts are loaded and unloaded manually to handle the unique dimensions and configurations of the shelves.

Customized Solutions and Quotation

Our powder coating production lines are custom-designed to align with the specific requirements of each client's products and operational demands. To provide an accurate quotation, we require detailed parameters of the production line you need. We invite you to contact us and share a comprehensive specification for discussion; this information will greatly assist us in crafting a solution that perfectly matches your needs.

By choosing our customized approach, you can expect a powder coating solution that optimizes efficiency, ensures high-quality finishes, and meets your unique manufacturing requirements. Feel free to reach out for an exclusive design proposal tailored to your specifications.

The Process of Powder Coating Line:

1. Surface Preparation:	The first step in the powder coating line is the surface preparation of the aluminum profiles. This stage is essential to ensure proper adhesion of the powder coating. Surface preparation may include cleaning, degreasing, and removing any contaminants from the aluminum surfaces.
2. Pre-Treatment:	After surface preparation, the aluminum profiles undergo a pre-treatment process to enhance coating adhesion and corrosion resistance. Common pre-treatment methods include chemical cleaning, phosphating, or chromate conversion coating. The pre-treatment prepares the aluminum surface for better powder adhesion and improves coating performance.
3. Drying:	Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.
4. Powder Coating Application:	The dried aluminum profiles are then ready for powder coating application. The powder coating material is electrostatically charged and sprayed onto the aluminum profiles using powder coating guns. The positively charged powder particles are attracted to the grounded aluminum profiles, adhering to the surface uniformly.
5. Powder Curing:	After powder coating application, the aluminum profiles are transferred to curing ovens. In the curing ovens, the powder coating undergoes a thermal curing process. The oven's heat causes the powder particles to melt and flow, creating a continuous, smooth coating film. The curing process also chemically cross-links the powder particles, ensuring a durable and hardened finish.
6. Cooling:	Following the curing process, the coated aluminum profiles are allowed to cool down. This cooling phase stabilizes the coating and ensures it maintains its properties and appearance.
7. Quality Inspection:	After cooling, the coated aluminum profiles undergo a thorough quality inspection. The inspection involves checking the coating thickness, appearance, adhesion, and overall quality to ensure it meets the specified standards.
