High-Performance and Customizable Powder Supply Center for Powder Coating Equipment Spray Booth

High-Performance and Customizable Powder Supply Center for Powder Coating Equipment Spray Booth

Brand Name: CHG
Model Number: CB-PC-02
MOQ: 1 set
Price: 1,000-2,000 USD
Payment Terms: T/T,Western Union,MoneyGram,D/P,L/C,D/A
Supply Ability: 1000 sets per year
Detail Information
Place of Origin:
China
Certification:
CE,ISO
Control Unit:
PLC
Technical Data:
Customized
Type:
Electrostatic Spraying Equipment
Method Type:
Automatic
Specification:
Customized
Supply Ability:
1000/Year
Customization:
Available
Packaging Details:
Varies depending on the design
Product Description

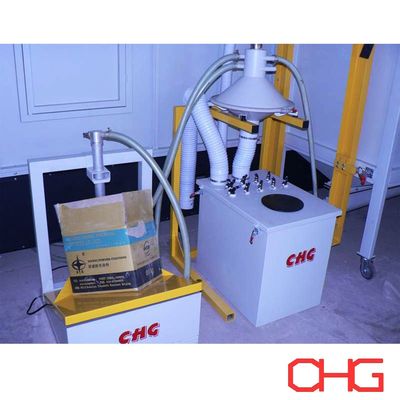

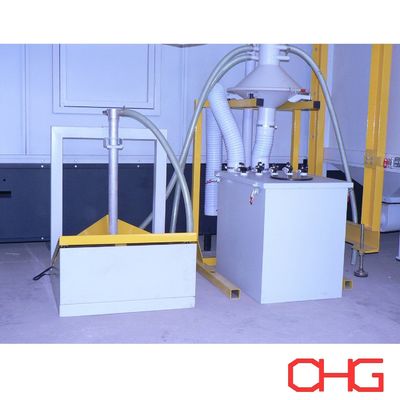

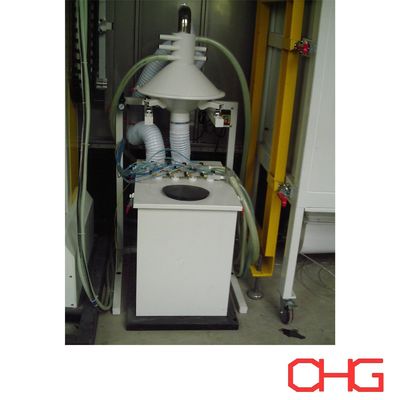

Powder Supply Center – Vibrating Powder Supplier, Electric Sifter & Powder Bucket

Our Powder Supply Center is designed to ensure a stable, efficient, and clean powder coating process. It integrates three core components working seamlessly together:

  • Vibrating Powder Supplier (VPS) – Simply place the powder box onto the VPS. Powder is automatically pumped into the sifter for continuous supply.

  • Electric Sifter (ES) – The powder is finely sifted to remove impurities and ensure uniform particle quality before use.

  • Powder Bucket (PB) – Equipped with a fluidized bed, the bucket transforms the powder into a consistent, fluidized state, ready for smooth and even spraying.

This integrated system guarantees high coating quality, reduced waste, and reliable performance, making it ideal for modern powder coating applications.

Contact us today for your exclusive design proposal. We also offer fully customized coating production lines tailored to the unique characteristics of your products.


No Item Parameter
1 Model CHG-GF-2008
2 Voltage ~220V 50Hz
3 ES power 30W
4 VPS power 40W
5 PB capacity 50kg
6 ES capacity 4kg/min
7 Requirement of compressed air Moisture max1.3g/Nm3
Oil max0.01g/Nm3
Air flow rate Max1.5Nm3/h
Pressure 0.4MPa
8 Compressed air consumption Max0.5Nm3/min
