Powder Coating Production Line for Various Sizes Aluminium Profile Coating

Integrated Automatic and Manual Spraying

This powder coating production line combines automatic spraying with supplementary manual coating, making it perfectly suited for aluminum profiles of various sizes and shapes. The integration ensures uniform coverage and precise finishing, even on intricate designs.

Spray Booth Specifications

The spray booth is fabricated from PP (polypropylene), a material renowned for its excellent chemical resistance and durability. The booth's design emphasizes both functionality and operator comfort, featuring efficient ventilation systems and safety measures. Design blueprints provide a detailed overview of the spray booth layout, including its ventilation setup and safety features.

Overhead Conveyor System

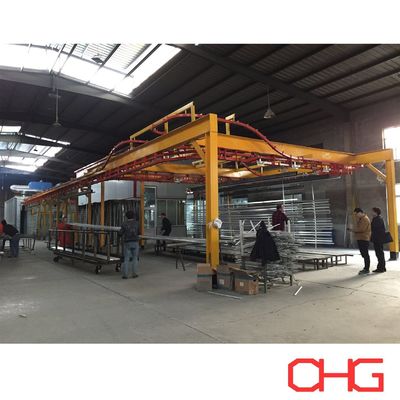

An overhead conveyor system is employed to facilitate smooth and efficient part movement through each stage of the coating process. This system optimizes space utilization while enhancing throughput. The engineering drawings illustrate the overhead conveyor pathway, showing how parts are systematically transported through cleaning, pre-treatment, drying, coating, and curing stages.

Manual Loading and Unloading Stations

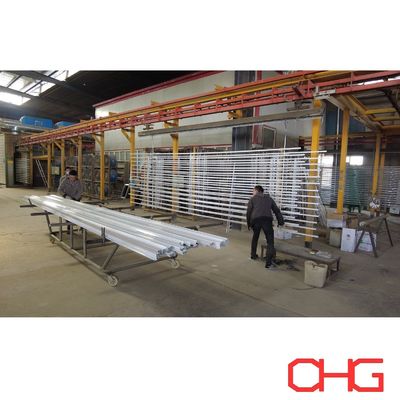

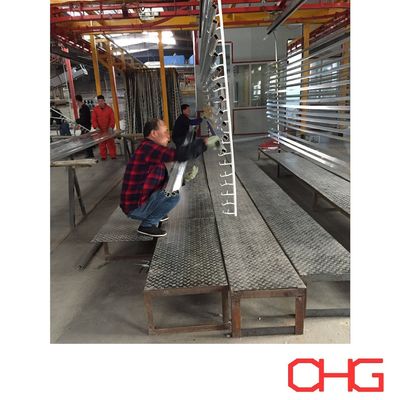

Parts are manually loaded and unloaded at specially designated stations along the conveyor line. This method offers flexibility in handling diverse profile types and sizes, ensuring accurate positioning for optimal coating results. The design plans highlight specific loading and unloading areas, equipped with ergonomic workstations to improve operational ease and efficiency.

By merging advanced automation with manual precision, this powder coating production line delivers high-quality finishes tailored to the unique requirements of aluminum profiles. Accompanying design drawings provide a clear visual guide to the system’s layout and workflow, ensuring transparent and straightforward setup and operation.

The Process of Powder Coating Line:
