Customizable Electrostatic Powder Coating Line With Lift Iron Electric Control Cabinet

Customized Iron Electric Control Cabinet Electrostatic Powder Coating Line with Lift

This powder coating production line sprays iron electric control cabinet.

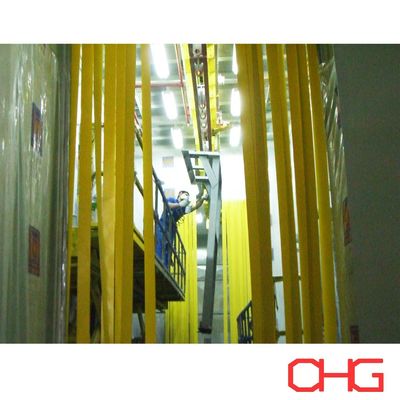

The material of the spray booth is PP, and the spraying method combines automatic gun spraying and additional manual coating, and adopts suspended chain hoist.

Production Line Workflow

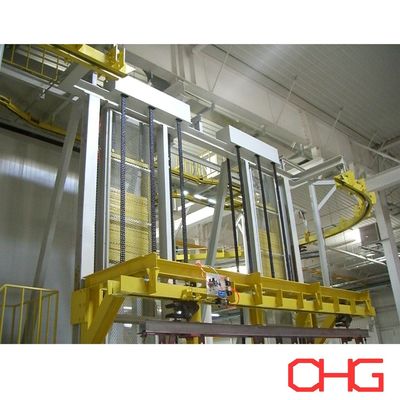

1. Hanger Stop & Elevator Assistance: The hangers stop, and the elevator descends to assist in manual hanging of workpieces.
2. Pre-Spray Treatment: Workpieces step through each station where they pause for spraying and cleaning, ensuring thorough pre-treatment at every point.
3. Moisture Drying: Workpieces accumulate in a designated area for moisture drying, ensuring all surfaces are dry before proceeding.
4. Automatic Spraying Room: Workpieces move continuously through the automatic spraying room at a process speed of 1.5 meters per minute. This stage combines automatic spraying with additional manual coating for comprehensive coverage.
5. Manual Spray Booth: Workpieces temporarily stop as they enter the manual spray booth for precise manual coating.
6. Powder Solidification: Workpieces are accumulated obliquely to facilitate optimal powder solidification, ensuring a durable finish.
7. Natural Cooling: The workpieces stop to undergo natural cooling, stabilizing the coating and preserving its integrity.
8. Elevator Down & Manual Picking: Finally, the elevator descends again to assist in the manual picking of finished workpieces, which are then prepared for further processing or packaging.

This streamlined workflow integrates both automated and manual processes to ensure high-quality coating and efficient production from start to finish.
