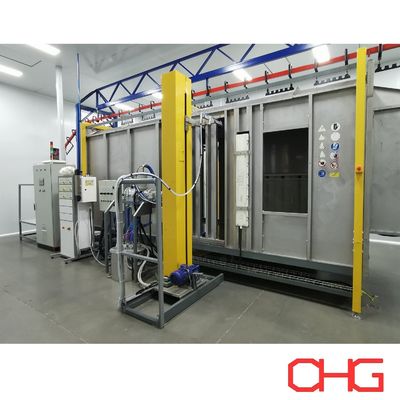

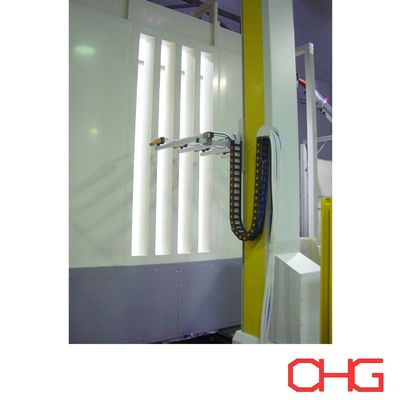

Vertical Reciprocator for Powder Coating in Spray Booth Coating Machine reciprocating motion

Vertical Reciprocator for Powder Coating in Spray Booth Coating Machine reciprocating motion

Brand Name:	CHG
Model Number:	CB-R-01
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Standard Gun Quantity:

Max Route:

1200mm

Type:

Electrostatic Spraying Equipment

Condition:

New

Transport Package:

Customized

Trademark:

CHG

Packaging Details:

Varies depending on the design

Product Description

Introducing our state-of-the-art Reciprocator, a versatile and efficient solution designed to enhance the precision and productivity of coating applications. Whether you're in the automotive, aerospace, furniture, or general manufacturing industry, our reciprocator is engineered to meet your coating needs with exceptional performance and reliability.

Benefits:

✔ Superior Coating Quality
✔ Increased Production Efficiency
✔ Significant Material Savings
✔ Multi-Process Versatility
✔ Reliable, Consistent Performance

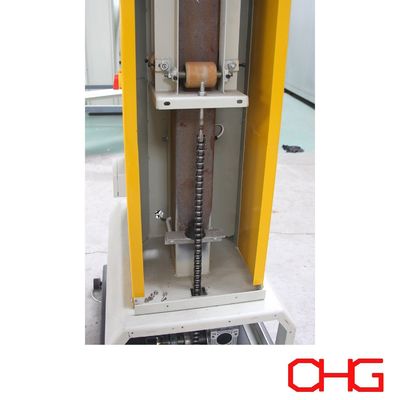

- Power of reciprocator is from motorreducer's torque output.

- Speed is controlled by transducer's adjusting motor rotate speed.

- Reciprocator's journey precision can be controlled to millimeter by rotating coder.

- Standard number of gun is 4.

- The number of gun and journey of reciprocator can be increased according to user's demands. But the user must write in when ordering.

Key Features:

- Dynamic Reciprocating Motion

Delivers ultra-smooth, precision-engineered linear motion for flawless coating application
Ensures uniform material distribution with micron-level accuracy
Reduces overspray by up to 30% compared to conventional systems
Optimizes material usage through controlled deposition patterns

- Adjustable Speed and Stroke Length

Fully programmable speed (0.1-5 m/s) and stroke length (100-2000mm) adjustments
Real-time digital feedback for precise coating parameter maintenance
Memory function stores optimal settings for different applications

- User-Friendly Interface
The reciprocator is equipped with an intuitive user interface, making it simple to program and operate. Adjust settings and monitor the coating process with ease, enabling seamless integration into your production line.

- Sturdy Construction and Stability
Crafted from high-quality materials, our reciprocator is built to withstand demanding industrial environments. Its robust construction and stable design ensure consistent performance, even during prolonged usage.

- Safety Features
Safety is our priority. The reciprocator is equipped with advanced safety features, including emergency stop functions and protective guards, to ensure the well-being of your operators and the surrounding work area.

- Easy Maintenance
With a focus on user convenience, our reciprocator is designed for easy maintenance and cleaning. This reduces downtime and enhances overall productivity.

Product Parameters

NO.	Item	Parameter
1	Model	CHG-SJ-2000
2	Motor power	0.75kW 3~380V 50~60Hz
3	Reducer turns ratio	1:15
4	Max route	1200mm
5	Running speed	0~0.5m/s
6	Standard gun quantity	4
7	Parameter setup	Manual setup
