Powder Coating Line
Created with Pixso.

Customized Structural Parts Look No Further than Our Top Powder Coating Production Line with Overhead Conveyor System

Customized Structural Parts Look No Further than Our Top Powder Coating Production Line with Overhead Conveyor System

Brand Name: CHG
Model Number: AC-18
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per year
Detail Information
Place of Origin:
China
Certification:
ISO, CE
Coating:
Powder
Condition:
New
After-Sales Service:
Guide Equipment Installation And Use
Mini Order Qty:
1 Set Line
Specification:
Customizable
Package Size:
20000.00cm * 200.00cm * 400.00cm
Packaging Details:
Varies depending on the design
Product Description

Powder Coating Production Line for Aluminum Profiles



Streamlined and Adaptable Processing



This powder coating production line is crafted to accommodate aluminum profiles of diverse dimensions and configurations. It employs an overhead conveyor system for seamless part transportation, while manual loading and unloading ensure adaptability and user-friendly operation.

Bespoke Solutions and Pricing



Our powder coating systems are thoughtfully engineered to meet the distinct needs of each client’s products and operational environment. For a tailored quotation, we request detailed parameters of your desired setup. We encourage you to reach out and provide a thorough specification document for review. This collaborative dialogue will help us design a solution that precisely fits your requirements and deliver a reliable cost estimate.



Through close collaboration, we optimize every facet of the production line to exceed your expectations, ensuring both operational efficiency and superior product quality.



Tailored Manufacturing Excellence



By adopting our customized approach, you can anticipate a powder coating solution that enhances productivity and satisfies your specific manufacturing needs. Contact us to receive your personalized design proposal. Additionally, we offer bespoke services for various coating production lines, adapting to the unique characteristics of different products.


The Process of Powder Coating Line:

To ensure high-quality finishes that enhance both durability and aesthetic appeal, our powder coating process follows these meticulously designed steps:


1. Surface Preparation:

The process begins with surface preparation, a critical step to ensure optimal adhesion of the coating. This involves cleaning, degreasing, and removing any contaminants from the aluminum surfaces, preparing them for subsequent treatments.

2. Pre-Treatment:

Following surface preparation, the aluminum profiles undergo pre-treatment to enhance both coating adhesion and corrosion resistance. Pre-treatment methods may include chemical cleaning, phosphating, or chromate conversion coating. These processes condition the aluminum surface for better powder adhesion and improved coating performance.

3. Drying:

Once pre-treated, the aluminum profiles are conveyed through drying ovens to eliminate any residual moisture. Ensuring the aluminum is completely dry is essential for achieving proper powder coating adhesion and finish quality.

4. Powder Coating Application:

With the profiles thoroughly dried, they are ready for powder coating application. The powder, electrostatically charged, is sprayed onto the grounded aluminum profiles using specialized powder coating guns. The charged particles are attracted to the profiles, ensuring an even and uniform coating.

5. Powder Curing:

After application, the coated aluminum profiles move into curing ovens where thermal curing takes place. The heat causes the powder to melt and flow, forming a continuous, smooth film. Additionally, the curing process facilitates chemical cross-linking of the powder particles, resulting in a durable, hardened finish.

6. Cooling:

Upon exiting the curing ovens, the coated aluminum profiles enter a cooling phase. Cooling stabilizes the coating, preserving its properties and appearance.

7. Quality Inspection:

The final step involves a rigorous quality inspection. Technicians check the coating thickness, appearance, adhesion, and overall quality to ensure compliance with specified standards. This ensures that every coated profile meets the highest quality criteria before it leaves the production line.



By adhering to these carefully engineered steps, our powder coating process guarantees superior finishes that not only enhance durability but also improve the visual appeal of aluminum profiles.

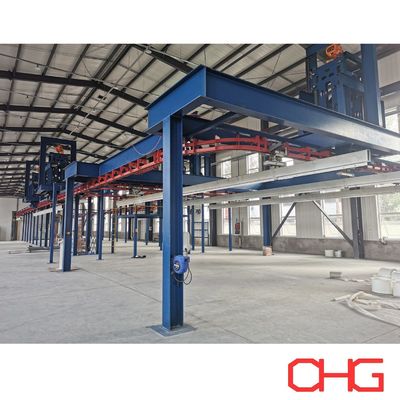

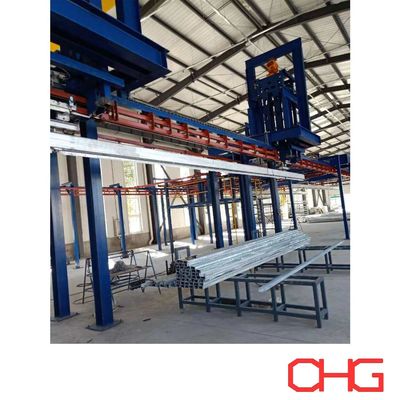

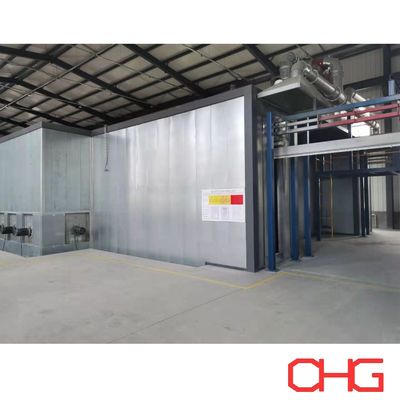

Customized Structural Parts Look No Further than Our Top Powder Coating Production Line with Overhead Conveyor System 0 Customized Structural Parts Look No Further than Our Top Powder Coating Production Line with Overhead Conveyor System 1 Customized Structural Parts Look No Further than Our Top Powder Coating Production Line with Overhead Conveyor System 2
