Top Powder Coating Production Line with PLC Control Unit

Top Powder Coating Production Line with PLC Control Unit

Brand Name:	CHG
Model Number:	AC-29
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Coating:

Powder Coating

Mini Order Qty:

1 Set Line

Transport Package:

Customizable

Specification:

Customizable

Warranty:

1 Year

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Varies depending on the design

Product Description

Automated Powder Coating Line

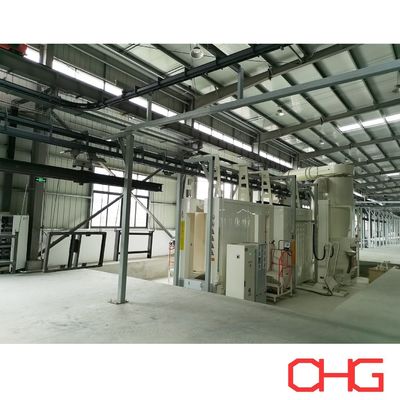

This automated powder coating line is designed to handle metal parts of various sizes and shapes. The spray booth is made from durable polypropylene (PP) material, which resists chemicals and lasts long. The spraying process combines automatic gun spraying with manual touch-ups for flexibility and precision.

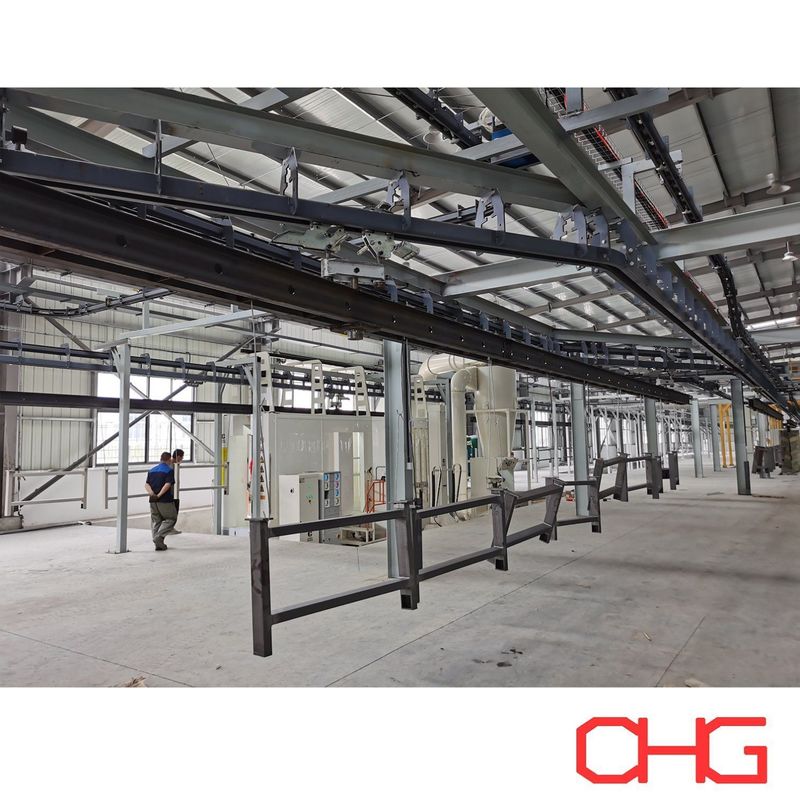

The line uses a power & free overhead conveyor system to move parts smoothly through the process. Parts are loaded and unloaded by hand to accommodate different shapes and ensure adaptability.

Customized Solutions and Quotation

We tailor our powder coating lines to fit your specific product and operational needs. For an accurate quote, we need details about the production line you require. Please contact us with your specifications so we can design a solution that perfectly matches your requirements.

By choosing our customized approach, you get a powder coating system that boosts efficiency, ensures high-quality finishes, and meets your unique manufacturing demands.

The Process of Powder Coating Line:

1. Surface Preparation:	The first step in the powder coating line is the surface preparation of the aluminum profiles. This stage is essential to ensure proper adhesion of the powder coating. Surface preparation may include cleaning, degreasing, and removing any contaminants from the aluminum surfaces.
2. Pre-Treatment:	After surface preparation, the aluminum profiles undergo a pre-treatment process to enhance coating adhesion and corrosion resistance. Common pre-treatment methods include chemical cleaning, phosphating, or chromate conversion coating. The pre-treatment prepares the aluminum surface for better powder adhesion and improves coating performance.
3. Drying:	Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.
4. Powder Coating Application:	The dried aluminum profiles are then ready for powder coating application. The powder coating material is electrostatically charged and sprayed onto the aluminum profiles using powder coating guns. The positively charged powder particles are attracted to the grounded aluminum profiles, adhering to the surface uniformly.
5. Powder Curing:	After powder coating application, the aluminum profiles are transferred to curing ovens. In the curing ovens, the powder coating undergoes a thermal curing process. The oven's heat causes the powder particles to melt and flow, creating a continuous, smooth coating film. The curing process also chemically cross-links the powder particles, ensuring a durable and hardened finish.
6. Cooling:	Following the curing process, the coated aluminum profiles are allowed to cool down. This cooling phase stabilizes the coating and ensures it maintains its properties and appearance.
7. Quality Inspection:	After cooling, the coated aluminum profiles undergo a thorough quality inspection. The inspection involves checking the coating thickness, appearance, adhesion, and overall quality to ensure it meets the specified standards.
