Customized Manual Powder Coating Line with Carbon Steel Spray Booth

Name: Customized Manual Powder Coating Line with Carbon Steel Spray Booth
Brand: CHG International Limited
SKU: AC-26
Price: 150.00 USD
Availability: InStock

Brand Name:	CHG
Model Number:	AC-26
MOQ:	1 set
Price:	100,000-200,00 USD
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	20 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Model NO.:

AC-26

Substrate:

Metal

Control Unit:

PLC

Size:

Customized

Warranty:

12 Months

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Varies depending on the design

Highlight:

customized manual powder coating line

carbon steel powder coating booth

powder coating line with warranty

Product Description

Metal Powder Coating Line With Manual Spray Guns Designed And Customized

Overhead Conveyor and Spray Booth Specifications

System Overview

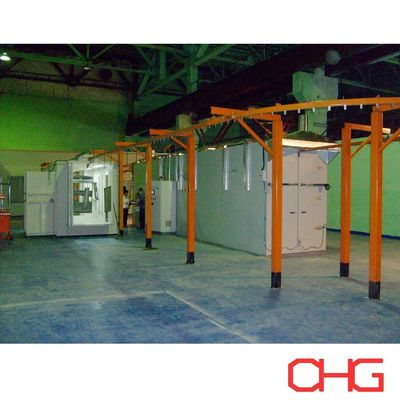

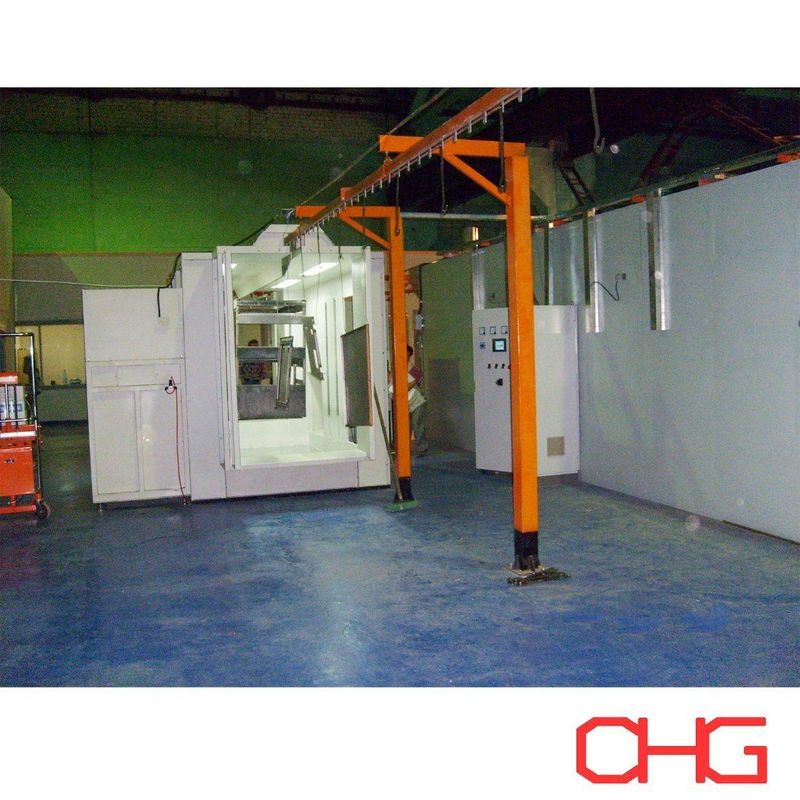

Overhead Conveyor:
Engineered for steady, seamless movement of parts through each production stage.

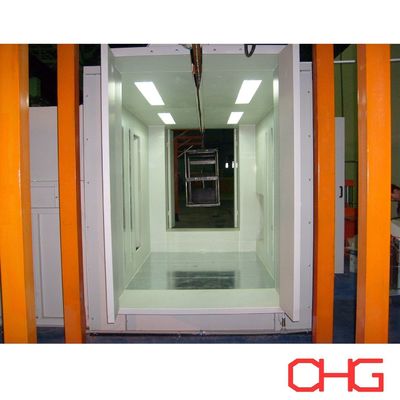

Spray Booth Structure:
Fabricated from heavy-duty carbon steel, ensuring long-lasting durability and resistance to environmental wear.

Spraying Configuration

Manual coating application for precise, controlled coverage
Pre-designed mounting points allowing easy integration of automatic spray guns in the future

Process Sequence

Manual Loading – Operators position workpieces onto the conveyor track
Manual Powder Coating – Trained staff apply electrostatic powder to achieve even coverage
Curing Stage – Coated parts pass through an oven where the powder is melted and cross-linked
Cooling Section – Natural air cooling helps stabilize the coating and preserve finish quality
Manual Unloading – Completed components are removed from the line for inspection or packing

Design Highlights

Fully operational for manual coating from day one
Easily upgradable for automated production
Sturdy construction guarantees reliability and extended service life

Manual vs. Automatic Spraying Comparison:

Feature	Manual Spraying	Automatic Spraying
Precision	High (operator-controlled)	Consistent (programmable paths)
Speed	Moderate (skill-dependent)	High (optimized for volume)
Flexibility	Excellent (adapts to complex parts)	Limited (requires pre-programming)
Labor Cost	Higher (skilled operators required)	Lower (reduced labor needs)
Initial Cost	Lower equipment investment	Higher upfront automation costs
Material Usage	70-85% transfer efficiency	90-95% transfer efficiency
Best For	Low-mix/high-complexity production	High-volume/standardized parts

Customized Solutions

Feel free to contact us to receive your exclusive design proposal. We specialize in customizing coating production lines based on the specific characteristics and requirements of your products, ensuring a solution that perfectly matches your manufacturing needs.

Customized Manual Powder Coating Line with Carbon Steel Spray Booth 0

Customized Manual Powder Coating Line with Carbon Steel Spray Booth 1
