Customizable and High Performance Powder Coating Production Line for Aluminum Profiles Hardware Spraying Equipment

Customizable and High Performance Powder Coating Production Line for Aluminum Profiles Hardware Spraying Equipment

Brand Name:	CHG
Model Number:	AC-25
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Substrate:

Aluminum

Application:

Hardware Spraying Equipment

Size:

Customized

Specification:

Customized

Trademark:

CHG

Origin:

China

Packaging Details:

Varies depending on the design

Product Description

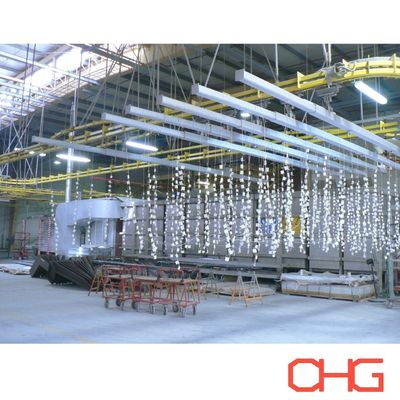

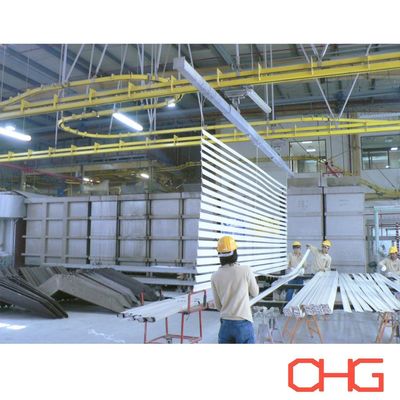

This powder coating production line combines automatic spraying and additional manual coating, which is suitable for aluminum profiles of various sizes and shapes. The production line adopts the overhead system, and the parts are loaded and unloaded manually.

The Process of Powder Coating Line:

1. Surface Preparation:	The initial stage of the powder coating process involves surface preparation, which is critical for ensuring optimal adhesion of the powder coating to the aluminum profiles. This step includes cleaning, degreasing, and removing any contaminants from the surfaces to be coated, creating a pristine base for subsequent treatments.
2. Pre-Treatment:	Following surface preparation, the aluminum profiles undergo a pre-treatment process designed to enhance both the adhesion of the coating and resistance to corrosion. Pre-treatment methods can include chemical cleaning, phosphating, or chromate conversion coating. These processes condition the aluminum surface, promoting better powder adhesion and improving the overall performance of the coating.
3. Drying:	Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.

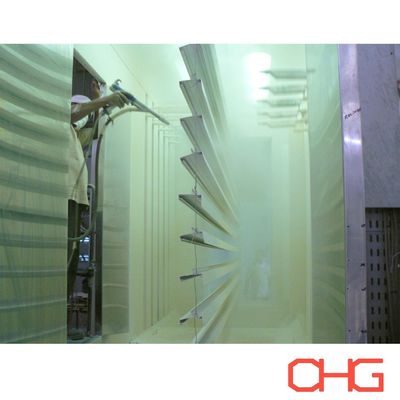

4. Powder Coating Application:	The dried aluminum profiles are then ready for powder coating application. The powder coating material is electrostatically charged and sprayed onto the aluminum profiles using powder coating guns. The positively charged powder particles are attracted to the grounded aluminum profiles, adhering to the surface uniformly.
5. Powder Curing:	After powder coating application, the aluminum profiles are transferred to curing ovens. In the curing ovens, the powder coating undergoes a thermal curing process. The oven's heat causes the powder particles to melt and flow, creating a continuous, smooth coating film. The curing process also chemically cross-links the powder particles, ensuring a durable and hardened finish.
6. Cooling:	Following the curing process, the coated aluminum profiles are allowed to cool down. This cooling phase stabilizes the coating and ensures it maintains its properties and appearance.
7. Quality Inspection:	After cooling, the coated aluminum profiles undergo a thorough quality inspection. The inspection involves checking the coating thickness, appearance, adhesion, and overall quality to ensure it meets the specified standards.
