Automated Powder Coating Line For Aluminum Profile Hardware With Conveyor System

Automated Powder Coating Line For Aluminum Profile Hardware With Conveyor System

Brand Name:	CHG
Model Number:	AC-22
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

After-Sales Service:

Guide Equipment Installation And Use

Mini Order Qty:

1 Set

Technical Data:

Customized

Transport Package:

Customized

Specification:

Customized

Supply Ability:

10/Year

Packaging Details:

Varies depending on the design

Highlight:

Automated Powder Coating Line

Hardware Powder Coating Line

Product Description

Automatic Powder Coating Production Line for Diverse Metal Parts

This automated powder coating line is designed to handle metal parts of various sizes and shapes, offering versatility and efficiency for a wide range of applications.

Customized Solutions and Quotation

Our powder coating production lines are meticulously tailored to meet the specific requirements of each client's products and operational demands. To provide an accurate quotation, we require detailed parameters of the production line you need. We invite you to contact us and share a comprehensive specification for discussion; this will greatly assist us in crafting a solution that perfectly aligns with your needs.

By choosing our customized approach, you can expect a powder coating solution that optimizes efficiency and meets your unique manufacturing requirements. Feel free to reach out for an exclusive design proposal tailored to your specifications.

The Process of Powder Coating Line:

1. Surface Preparation:	The first step in the powder coating line is the surface preparation of the aluminum profiles. This stage is essential to ensure proper adhesion of the powder coating. Surface preparation may include cleaning, degreasing, and removing any contaminants from the aluminum surfaces.
2. Pre-Treatment:	After surface preparation, the aluminum profiles undergo a pre-treatment process to enhance coating adhesion and corrosion resistance. Common pre-treatment methods include chemical cleaning, phosphating, or chromate conversion coating. The pre-treatment prepares the aluminum surface for better powder adhesion and improves coating performance.
3. Drying:	Once pre-treated, the aluminum profiles are conveyed through drying ovens to eliminate any residual moisture. Ensuring that the aluminum surfaces are completely dry is essential for achieving proper adhesion of the powder coating and maintaining a high-quality finish.

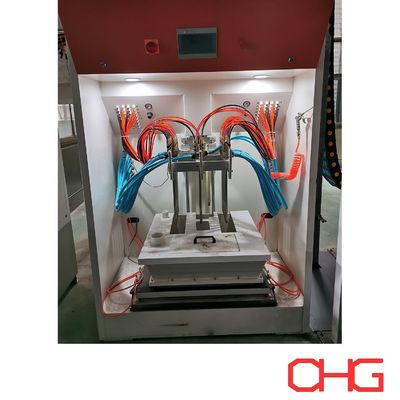

4. Powder Coating Application:	With the profiles thoroughly dried, they are ready for powder coating application. The powder coating material, electrostatically charged, is sprayed onto the aluminum profiles using specialized powder coating guns. The positively charged powder particles are attracted to the grounded metal surfaces, ensuring an even and uniform coating across all areas.
5. Powder Curing:	After the powder has been applied, the coated aluminum profiles are transferred to curing ovens. Inside these ovens, the powder coating undergoes a thermal curing process. The heat causes the powder particles to melt and flow together, forming a continuous, smooth film. Additionally, the curing process chemically cross-links the powder particles, resulting in a durable and hardened finish.
6. Cooling:	Following the curing process, the coated aluminum profiles are allowed to cool down. This cooling phase stabilizes the coating and ensures it maintains its properties and appearance.
7. Quality Inspection:	After cooling, the coated aluminum profiles undergo a thorough quality inspection. The inspection involves checking the coating thickness, appearance, adhesion, and overall quality to ensure it meets the specified standards.

Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.

Customized Automatic Powder Coating Line with Conveyor System for Aluminum Profile
