Customized Professional Wet Painting Production Line Coating Line for Steel Structural Parts

Name: Customized Professional Wet Painting Production Line Coating Line for Steel Structural Parts
Brand: CHG International Limited
SKU: AC-04
Availability: InStock

Brand Name:	CHG
Model Number:	AC-04
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Model NO.:

AC-04

Method Type:

Automatic

Mini Order Qty:

1 Set

Control Unit:

PLC

Package Size:

20000.00cm * 200.00cm * 400.00cm

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Varies depending on the design

Product Description

Structural Parts Liquid Painting Production Line with Customizable Automatic Coating Machine

This production system is specifically engineered for painting carbon steel structural components, offering dual application methods:

Coating Application Options

Angled basket dipping process

Material Handling System

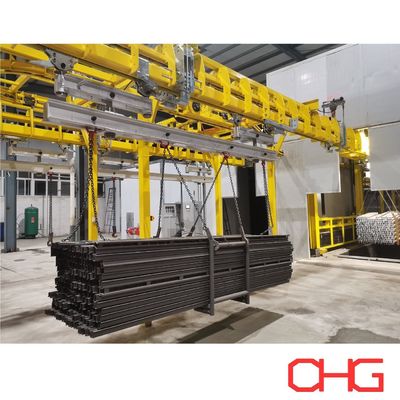

Power-and-free overhead conveyor configuration
Forklift-assisted manual loading/unloading stations

Key Features

Designed for medium-to-heavy structural components
Optimized for carbon steel substrate preparation
Flexible production flow accommodating both coating methods

System Components

Motorized conveyor with variable speed control
45° angled dipping station for complete coverage
Dedicated drying/curing zones

Operational Parameters

Maximum load capacity: 2000kg per carrier
Line speed: 0.5-3.0 m/min adjustable
Dipping tank dimensions: [customizable]

Production Line Process:

Manual Loading (forklift-assisted)
Immersion Coating (6 minutes)
Drip-Off Station (90 minutes)

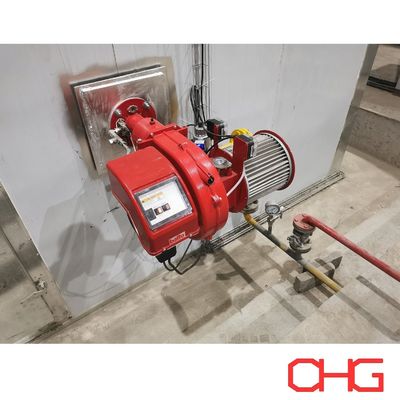

Drying Oven (48 minutes at 60-80°C)
Natural Cooling (6 minutes)
Manual Unloading (forklift-assisted)

Benefits:

Superior Coating Performance	Our dipping coating line ensures uniform and comprehensive coverage, offering outstanding protection against corrosion and environmental factors. This guarantees the long-term durability of your carbon steel structural components.
Boosted Production Efficiency	Leverage our accumulation conveyor system and automated material handling to achieve higher production throughput, minimize downtime, and enhance overall operational efficiency.
Enhanced Cost-Effectiveness	The precise dipping process, coupled with energy-efficient drying and curing ovens, optimizes material usage. This reduces waste and lowers operational costs, improving your bottom line.
Exceptional Finish Quality	Benefit from advanced technology and stringent quality control measures that ensure a flawless, consistent finish. This not only elevates the aesthetics but also enhances the market appeal of your carbon steel components.

Our advanced dipping coating system delivers:

Precision immersion for uniform coverage
Optimized productivity with efficient process timing
Superior finish quality for enhanced durability

Custom Solutions Available
We engineer coating lines to meet your specific production needs. Contact us for a tailored proposal.
