Structural Parts Wet Painting Line with PLC Control and Customized Conveyor System

Structural Parts Wet Painting Line with PLC Control and Customized Conveyor System

Brand Name:	CHG
Model Number:	AC-04
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Substrate:

Steel

Categories:

Coating Production Line

Transport Package:

Customized

Specification:

Customized

Origin:

China

Warranty:

1 Year

Packaging Details:

Varies depending on the design

Product Description

Structural Parts Liquid Painting Production Line with Customizable Automatic Coating Machine

This production system is specifically engineered for painting carbon steel structural components, offering dual application methods:

Coating Application Options

Angled basket dipping process

Material Handling System

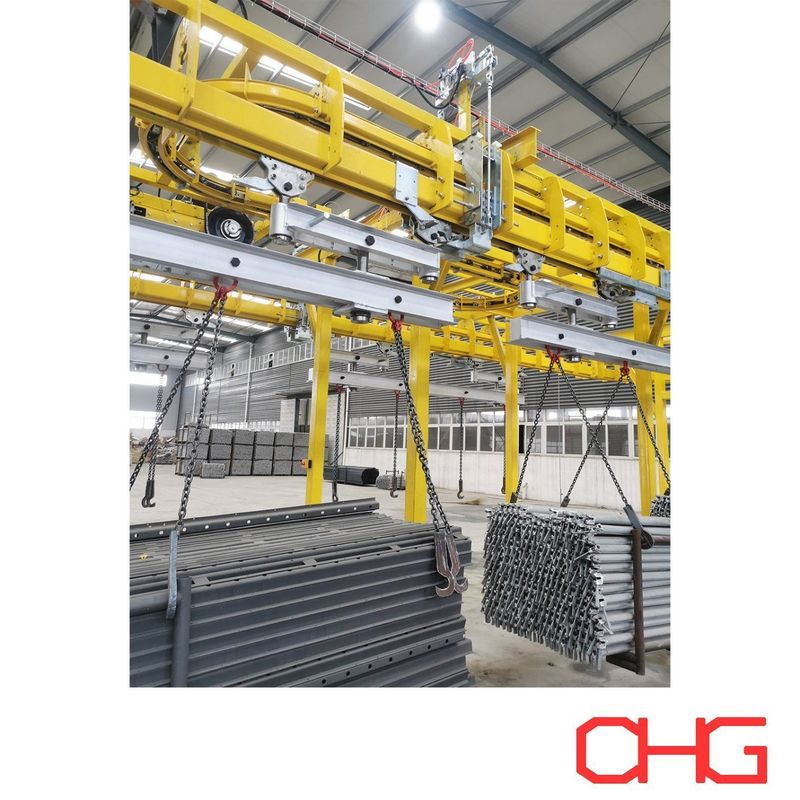

Power-and-free overhead conveyor configuration
Forklift-assisted manual loading/unloading stations

Key Features

Designed for medium-to-heavy structural components
Optimized for carbon steel substrate preparation
Flexible production flow accommodating both coating methods

System Components

Motorized conveyor with variable speed control
45° angled dipping station for complete coverage
Dedicated drying/curing zones

Operational Parameters

Maximum load capacity: 2000kg per carrier
Line speed: 0.5-3.0 m/min adjustable
Dipping tank dimensions: [customizable]

Production line process:
forklift assisted manual loading → dipping and painting(6min) → dripping paint (90min) → paint drying (48min 60-80°C) → natural cooling (6min) → forklift assisted manual unloading

Benefits:

Superior Coating Performance	Our dipping coating line ensures uniform and comprehensive coverage, offering outstanding protection against corrosion and environmental factors. This guarantees the long-term durability of your carbon steel structural components.
Boosted Production Efficiency	Leverage our accumulation conveyor system and automated material handling to achieve higher production throughput, minimize downtime, and enhance overall operational efficiency.
Enhanced Cost-Effectiveness	The precise dipping process, coupled with energy-efficient drying and curing ovens, optimizes material usage. This reduces waste and lowers operational costs, improving your bottom line.
Exceptional Finish Quality	Benefit from advanced technology and stringent quality control measures that ensure a flawless, consistent finish. This not only elevates the aesthetics but also enhances the market appeal of your carbon steel components.

Invest in our cutting-edge Carbon Steel Structural Parts Liquid Dipping Coating Line for unrivaled coating results. Experience the benefits of precise immersion, enhanced productivity, and superior finish quality. Elevate your coating capabilities with our advanced solution today.

Feel free to contact us to get your exclusive design proposal. We can also customize other types of coating production line based on product characteristics.
