Professional E Coating Line for Metal Parts with Pre-spray Treatment and Electrophoretic Deposition Process

Professional E Coating Line for Metal Parts with Pre-spray Treatment and Electrophoretic Deposition Process

Brand Name:	CHG
Model Number:	AC-14
MOQ:	1 set
Price:	1,000,000 - 2,000,000 USD
Payment Terms:	MoneyGram,T/T,L/C,D/A,D/P,Western Union
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, CE, ISO

Coating:

Plating, Paint

Condition:

New, New

Transport Package:

Customized

HS Code:

8424899990

Package Size:

20000.00cm * 200.00cm * 400.00cm

Warranty:

1 Year, 1 Year

Shipping Cost:

Contact The Supplier About Freight And Estimated Delivery Time.

Packaging Details:

Varies depending on the design

Product Description

Automatic Electrocoating Equipment E Coating Production Line EPD KTL With Customization

Technical Definition
Electrophoretic coating (also called E-coating, electrocoating, or electrophoretic deposition) is an electrochemical process where electrically conductive parts are immersed in a water-based paint solution. Through applied direct current, paint particles migrate and deposit uniformly onto the substrate surface, creating a continuous protective film.

Key Process Characteristics

Water-Based Chemistry: Utilizes environmentally friendly aqueous paint emulsions
Electrochemical Deposition: DC power enables controlled paint particle migration
Automatic Thickness Control: Film thickness regulated by voltage and duration
Complete Coverage: Recessed areas and complex geometries receive uniform coating

Production Line Process Sequence

Manual Loading: Operators place parts onto conveyor system
Pre-treatment Stage:
- Chemical cleaning and surface activation
- Phosphating or conversion coating
Electrophoretic Deposition:
- Cathodic electrocoating tank (20-30°C)
- Temperature-controlled air conditioning system
Post-treatment:
- Ultrafiltration (UF) rinse recovery
- Closed-loop water recycling
Curing Process:
- Paint film cross-linking (160-200°C)
Cooling Phase:
- Ambient temperature stabilization
Manual Unloading:
- Finished parts removal

Industry Applications

Automotive components (battery boxes, chassis)
Appliance manufacturing
Industrial equipment
Consumer products

Technical Advantages

Excellent corrosion protection (500-1000+ hours salt spray)
95%+ paint utilization efficiency
Minimal VOC emissions
Automated production capability

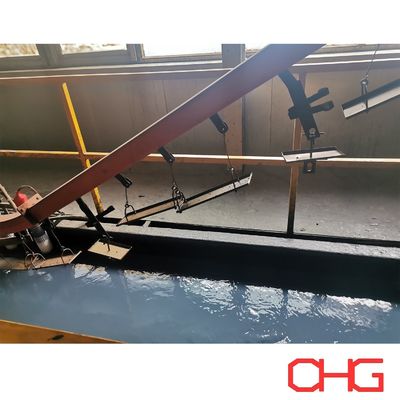

Professional E Coating Line for Metal Parts with Pre-spray Treatment and Electrophoretic Deposition Process 0

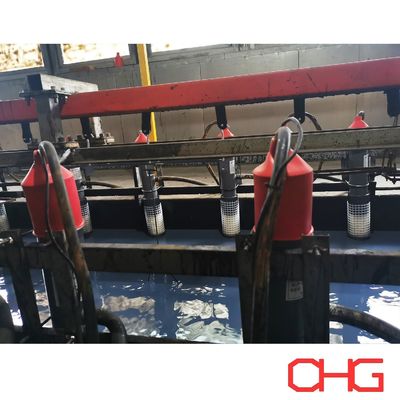

Professional E Coating Line for Metal Parts with Pre-spray Treatment and Electrophoretic Deposition Process 1
