Aluminum Anodizing Production Line for Automotive Components

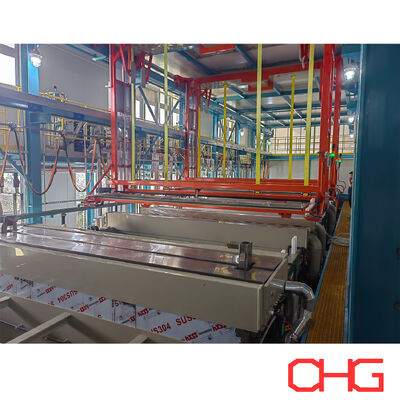

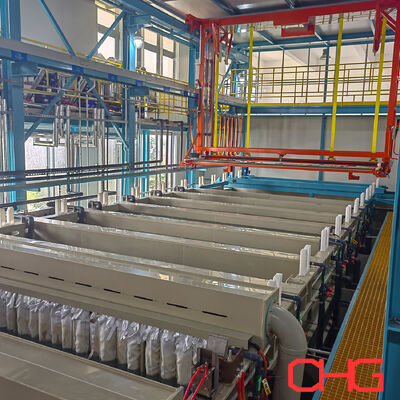

This project is a fully automated aluminum anodizing production line designed for high-quality surface treatment of automotive components. The system adopts a multi-tank continuous process layout combined with an efficient transfer system, enabling stable, high-throughput operation from loading to final unloading.

The production line features a complete process chain, including pre-treatment, anodizing, electrolytic coloring, sealing, and drying. The pre-treatment section integrates degreasing, ultrasonic cleaning, alkaline etching, chemical/electro polishing, neutralization, and multiple rinsing stages, ensuring optimal surface preparation before anodizing.

The anodizing section is equipped with multiple high-capacity anodizing tanks (approx. 4300L each), supported by circulation filtration systems, plate heat exchangers, and industrial chillers. This ensures precise temperature control and consistent oxide film quality.

For finishing, the line includes electrolytic coloring and multi-stage immersion processes to achieve various color and appearance requirements. Advanced sealing processes—cold sealing, medium-temperature sealing, and hot sealing—combined with multi-stage DI water rinsing significantly enhance corrosion resistance and durability. Final drying ovens complete the treatment process.

In addition, the system is supported by a comprehensive water treatment and recycling infrastructure, including pure water generation (quartz sand and activated carbon filtration), ultrafiltration units, and recovery/refining systems. Classified wastewater collection (acidic, alkaline, phosphate-containing, electrophoresis, etc.) ensures environmental compliance with automotive industry standards.

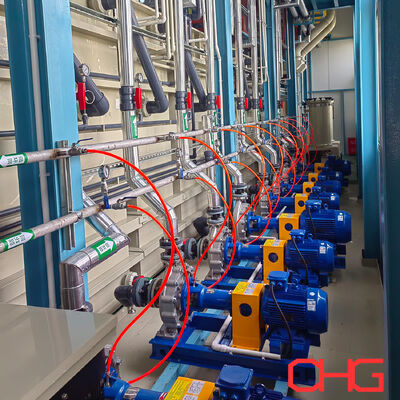

The line is equipped with high-performance components such as filtration units (30–40 T/H), PVDF circulation pumps, plate heat exchangers, and centralized electrical control systems, ensuring reliable and automated operation. The layout also incorporates buffer stations, transfer carts, and maintenance/inspection access, optimizing both productivity and plant management.

Key Features

• Fully Automated Operation: Integrated control system ensures stable, efficient, and consistent production.
• Complete Process Coverage: From degreasing to anodizing, coloring, sealing, and drying—all in one line.
• High-Precision Anodizing System: Large-capacity tanks with advanced temperature control and filtration.
• Flexible Surface Finishing: Supports electrolytic coloring and multiple sealing options for different performance requirements.
• Advanced Water Management: Equipped with pure water system, ultrafiltration, and recycling units to reduce water consumption.
• Environmental Compliance: Segregated wastewater collection and treatment-ready design.
• Energy-Efficient Design: Use of heat exchangers and cooling systems to optimize energy consumption.
• Optimized Layout: Includes buffer zones, transfer carts, and operator access pathways for smooth logistics.
