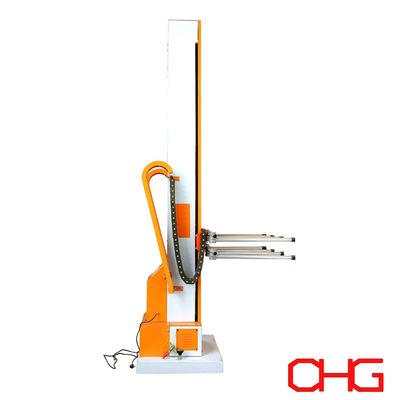

4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment

Name: 4 Standard Gun Quantity Vertical Reciprocator for Powder Coating Spray Booth Equipment
Brand: CHG International Limited
SKU: CB-R-01
Availability: InStock

Brand Name:	CHG
Model Number:	CB-R-01
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Model NO.:

CB-R-01

Running Speed:

0~0.5m/S

Max Route:

1200mm

After-sales Service:

Guide Equipment Installation And Use

Application:

Hardware Spraying Equipment, Plastic Spraying Equipment, Porcelain Spraying Equipment

Certification:

CE, ISO

Packaging Details:

Varies depending on the design

Product Description

Advanced Coating Reciprocator System

Industry Applications

Automotive components
Aerospace parts
Furniture manufacturing
General industrial products

Key Benefits
✔ Superior coating uniformity
✔ Increased production output
✔ Reduced material consumption
✔ Multi-substrate compatibility
✔ Repeatable high-quality results

Technical Specifications

Drive System

Motor reducer torque-driven operation
Variable frequency speed control
Rotary encoder positioning (±1mm)

Standard Configuration

4 spray gun capacity
Customizable gun quantity
Adjustable stroke length

Motion Control

Speed range: 0.1-5 m/s
Stroke length: 100-2000mm
Programmable motion profiles

Structural Design

Aluminum/steel hybrid construction
Vibration-dampened frame
IP65 protection rating

Control System

7" touchscreen HMI
Multi-language interface
Network connectivity options

Safety Features

Dual emergency stop circuits
Safety light curtains
Overload protection

Performance Metrics

Positioning accuracy: ±0.05mm
Noise level: <55 dB
Changeover time reduction: 30%

Customization Options

Gun configuration (4+ units)
Stroke length adjustments
Specialized mounting requirements

Product Parameters

NO.	Item	Parameter
1	Model	CHG-SJ-2000
2	Motor power	0.75kW 3~380V 50~60Hz
3	Reducer turns ratio	1:15
4	Max route	1200mm
5	Running speed	0~0.5m/s
6	Standard gun quantity	4
7	Parameter setup	Manual setup
