Power and Free Conveyor Automatic Powder Coating Line for Metal Shelves Powder Coating Plant

Power and Free Conveyor Automatic Powder Coating Line for Metal Shelves Powder Coating Plant

Brand Name: CHG
Model Number: AC-32
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per year
Detail Information
Place of Origin:
China
Certification:
CE, ISO
Model NO.:
AC-32
Method Type:
Automatic
Technical Data:
Customized
Origin:
China
HS Code:
8424899990
Warranty:
1 Year
Packaging Details:
Varies depending on the design
Product Description

Automated Powder Coating Line Specifications



Application:

  • Designed for coating shelves (maximum hanging length: 13.5 meters)

System Components:

  • Spray Booth: Constructed with durable PP material

  • Coating Application:
    • Automatic electrostatic spray guns
    • Manual touch-up stations

  • Conveyor System: Power & Free overhead configuration

  • Loading/Unloading: Manual operation

Custom Engineering Services: All our powder coating systems are custom-designed based on:

  • Specific product requirements

  • Client production demands

Quotation Process: For precise pricing, please provide:

  • Detailed production line specifications

  • Technical parameters

Additional Capabilities: We also engineer customized solutions for:

  • Various coating production lines

  • Specialized application requirements

The Process of Powder Coating Line:



1. Surface Preparation: The first step in the powder coating line is the surface preparation of the aluminum profiles. This stage is essential to ensure proper adhesion of the powder coating. Surface preparation may include cleaning, degreasing, and removing any contaminants from the aluminum surfaces.
2. Pre-Treatment: After surface preparation, the aluminum profiles undergo a pre-treatment process to enhance coating adhesion and corrosion resistance. Common pre-treatment methods include chemical cleaning, phosphating, or chromate conversion coating. The pre-treatment prepares the aluminum surface for better powder adhesion and improves coating performance.
3. Drying: Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.
4. Powder Coating Application: With the profiles thoroughly dried, they are ready for powder coating application. The powder, electrostatically charged, is sprayed onto the grounded aluminum profiles using specialized powder coating guns. The charged particles are attracted to the profiles, ensuring an even and uniform coating.
5. Powder Curing: After application, the coated aluminum profiles move into curing ovens where thermal curing takes place. The heat causes the powder to melt and flow, forming a continuous, smooth film. Additionally, the curing process facilitates chemical cross-linking of the powder particles, resulting in a durable, hardened finish.
6. Cooling: Following the curing process, the coated aluminum profiles are allowed to cool down. This cooling phase stabilizes the coating and ensures it maintains its properties and appearance.
7. Quality Inspection: The final step involves a rigorous quality inspection. Technicians check the coating thickness, appearance, adhesion, and overall quality to ensure compliance with specified standards. This ensures that every coated profile meets the highest quality criteria before it leaves the production line.

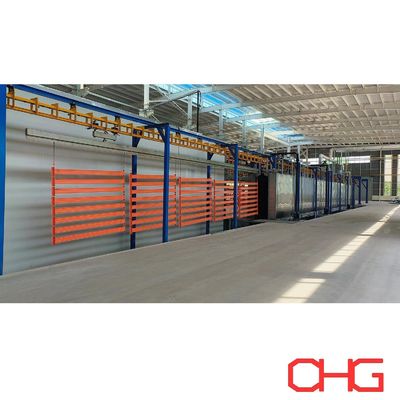

Power and Free Conveyor Automatic Powder Coating Line for Metal Shelves Powder Coating Plant 0

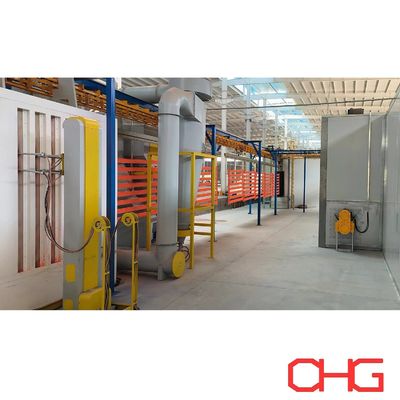

Power and Free Conveyor Automatic Powder Coating Line for Metal Shelves Powder Coating Plant 1

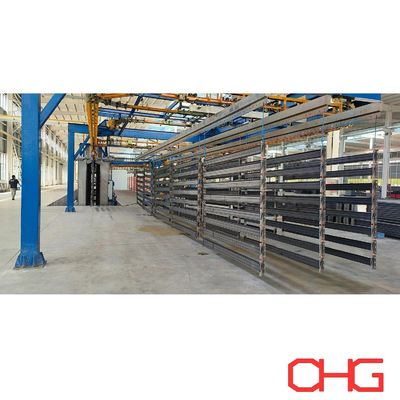

Power and Free Conveyor Automatic Powder Coating Line for Metal Shelves Powder Coating Plant 2
