Customized Electrostatic Automatic Powder Coating Line Made in with Coating Equipments

Customized Electrostatic Automatic Powder Coating Line Made in with Coating Equipments

Brand Name:	CHG
Model Number:	AC-30
MOQ:	1 set
Price:	Negotiable
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO, CE

Substrate:

Metal

Control Unit:

PLC

Technical Data:

Customized

Transport Package:

Customized

Trademark:

CHG

Origin:

China

Packaging Details:

Varies depending on the design

Product Description

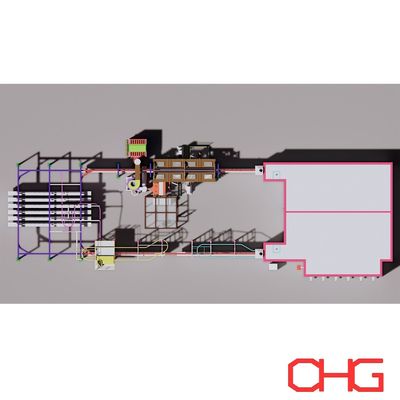

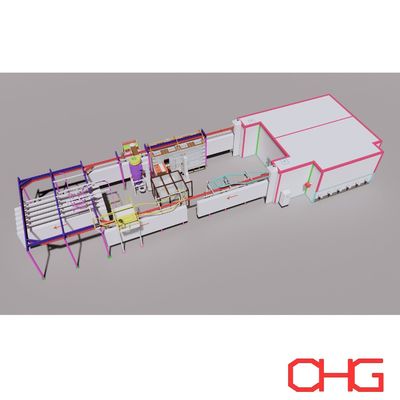

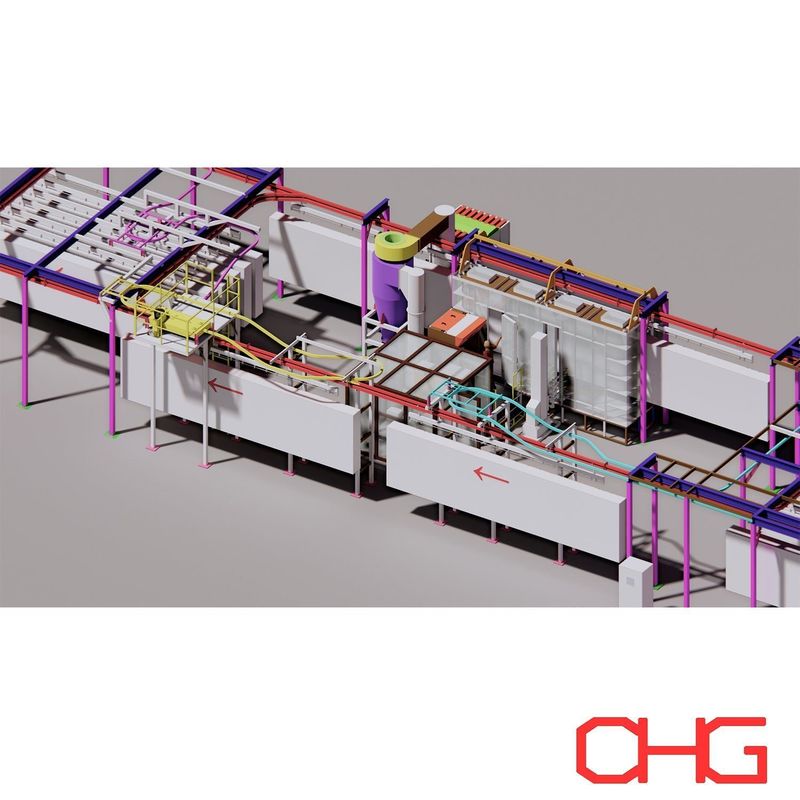

Automatic Powder Coating Production Line for Diverse Metal Parts

This automatic powder coating line is designed to handle metal parts of various sizes and shapes. The spray booth is made from PP (polypropylene) material, offering robust chemical resistance. The spraying process combines automatic gun spraying with supplementary manual coating, ensuring precision and flexibility. The production line utilizes a power & free overhead conveyor system for efficient part movement, while parts are loaded and unloaded manually to accommodate different part configurations.

Customized Solutions and Quotation

Our powder coating production lines are custom-designed to meet the specific requirements of each client's products and operational demands. For an accurate quotation, we need detailed parameters of the production line you require. We invite you to contact us and provide a comprehensive specification for discussion; this information will greatly assist us in crafting a solution tailored to your needs.

By choosing our customized approach, you can expect a powder coating solution that optimizes efficiency, ensures high-quality finishes, and meets your unique manufacturing requirements. Feel free to reach out for an exclusive design proposal tailored to your specifications.

The Process of Powder Coating Line:

1. Surface Preparation:	The first step in the powder coating line is the surface preparation of the aluminum profiles. This stage is essential to ensure proper adhesion of the powder coating. Surface preparation may include cleaning, degreasing, and removing any contaminants from the aluminum surfaces.
2. Pre-Treatment:	Following surface preparation, the aluminum profiles undergo a pre-treatment process to enhance both coating adhesion and corrosion resistance. Common methods include chemical cleaning, phosphating, or chromate conversion coating, all of which prepare the aluminum surface for optimal powder adhesion and improved coating performance.
3. Drying:	Once the pre-treatment is completed, the aluminum profiles are passed through drying ovens to remove any remaining moisture from the surface. Dry aluminum surfaces are crucial for proper powder coating adhesion and finish.
4. Powder Coating Application:	With the profiles thoroughly dried, they are ready for powder coating application. The electrostatically charged powder is sprayed onto the aluminum profiles using specialized guns. The positively charged powder particles are attracted to the grounded metal surfaces, ensuring an even and uniform coating.
5. Powder Curing:	After powder coating application, the aluminum profiles are transferred to curing ovens. In the curing ovens, the powder coating undergoes a thermal curing process. The oven's heat causes the powder particles to melt and flow, creating a continuous, smooth coating film. The curing process also chemically cross-links the powder particles, ensuring a durable and hardened finish.
6. Cooling:	Following the curing process, the coated profiles enter a cooling phase. This stabilizes the coating and ensures it retains its properties and appearance over time.
7. Quality Inspection:	After cooling, the coated aluminum profiles undergo a thorough quality inspection. The inspection involves checking the coating thickness, appearance, adhesion, and overall quality to ensure it meets the specified standards.

Electrostatic Automatic Powder Coating Line with Professional Coating Equipments
