Metal Substrate Electrophoresis Electrophoretic Coating Pretreatment Line With Customization Option

Metal Substrate Electrophoresis Electrophoretic Coating Pretreatment Line With Customization Option

Brand Name:	CHG
Model Number:	AC-31
MOQ:	1 set
Price:	100,000-200,000 USD
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram
Supply Ability:	10 sets per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO

Coating:

Plating, Powder

Substrate:

Metal

Condition:

New

Mini Order Qty:

1 Set

Size:

Customized

Control Unit:

PLC

Packaging Details:

Varies depending on the design

Highlight:

Metal Substrate Electrophoretic Coating Line

Electrophoresis Electrophoretic Coating Line

Product Description

Metal Substrate Electrophoresis Electrophoretic Coating Line with Customization Option

This pretreatment line is designed with a comprehensive series of processes specifically tailored for automotive components, ensuring superior surface preparation for subsequent coating applications. Notably, the acid treatment stage effectively removes residual contaminants and enhances coating adhesion. The line's design prioritizes efficiency and quality, with each step meticulously calibrated to ensure consistent and reliable outcomes. Advanced monitoring and control systems are integrated to maintain precise process parameters, ensuring the highest standards of surface cleanliness and finish quality throughout.

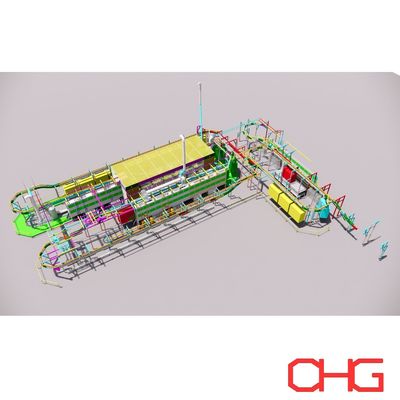

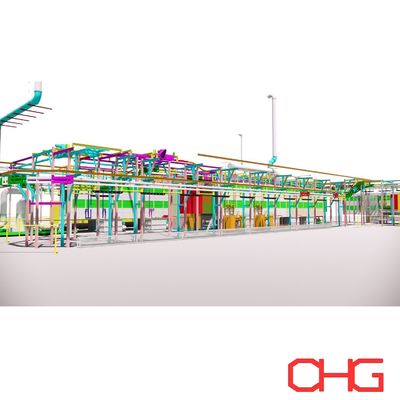

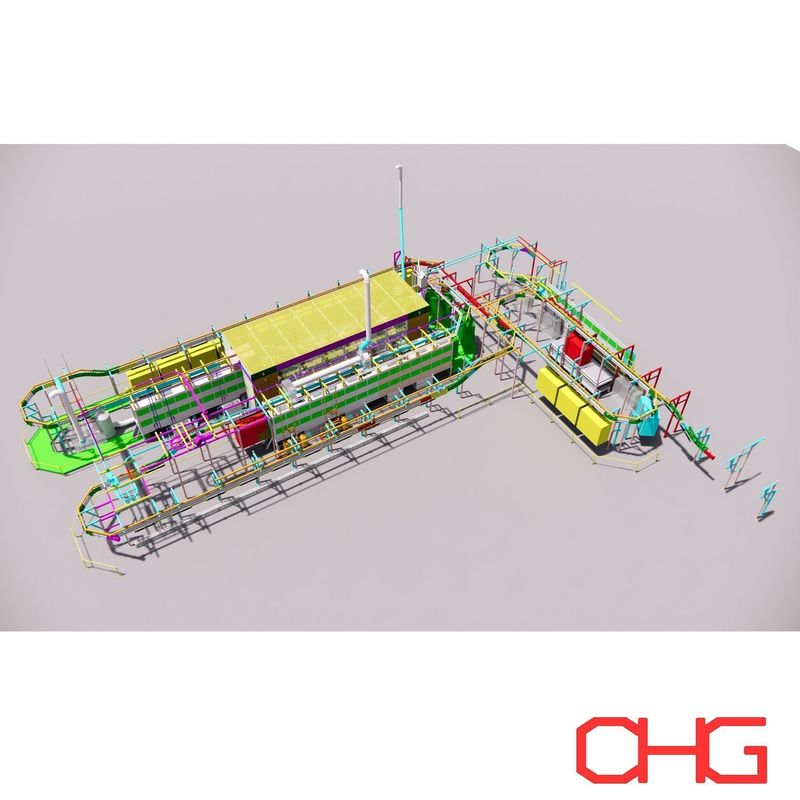

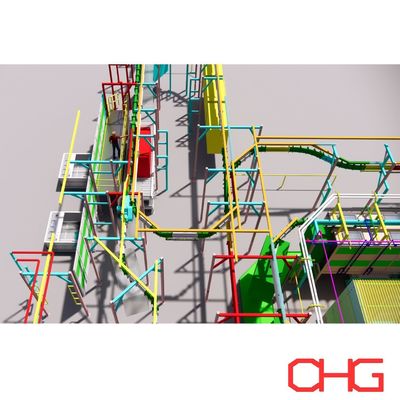

This pretreatment line comprises the following processes: pre-degreasing -> degreasing -> rinse 1 -> rinse 2 -> acid treatment -> rinse 1 -> rinse 2

The parts processed are automotive components measuring 1.1m x 4m x 2m.

	Pre-degreasing	Degreasing	Rinse 1	Rinse 2	Acid Treatment	Rinse 1	Rinse 2
Number of rinse rings	6	6	4	4	Bath	4	4
Number of rinse tubes	12	12	8	8		8	8
Total number of nozzles	144	144	96	96		96	96
Workspace rinse zone (m)	3.0	2.0	2.0	1.0	10.0	1.3	-0.2
Type spray pump	Cast iron	Cast iron	Cast iron	Stainless steel	Stainless steel	Cast iron	Stainless steel
Type heating pump	Cast iron	Cast iron
Bath level control	Automatic	Automatic	Cascade	Automatic	Automatic	Cascade	Automatic

Metal Substrate Electrophoresis Electrophoretic Coating Pretreatment Line With Customization Option 2
